InfiRay ML19 384 Mini Thermal Monocular

  • $2,499.00


The InfiRay Outdoor Mini ML19 is the smallest fully multi-functional 17 micron thermal imaging monocular on the market. It can be used as a handheld monocular as well as can be helmet mounted with a common dovetail mount system and bridge. The InfiRay Outdoor ML19 features Bluetooth, picture-in-picture, and compatibility with rechargeable batteries or external power supply.

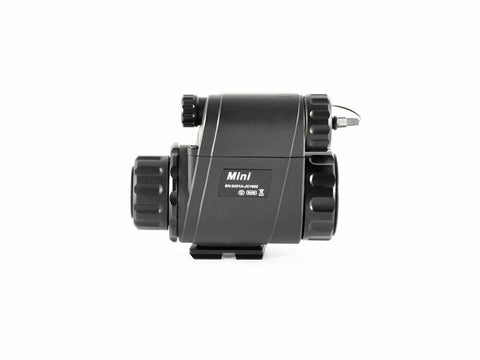

For hands-free operation there are 2 mounting points designed to allow for a wide variety of dovetail mount systems. The Mini ML19 display icons flip automatically when orientation is flipped.

The Mini ML19 is operated by an intuitive clearly labeled menu and user friendly rotary button. This one button operation has positive clicks with each selection and allows for quick and easy operation without having to search for any buttons in the dark.

The Mini is compatible with CR123A, CR123, 16340, and 16650 batteries.  It can also be powered by a 10,000 mah USB battery and will run the Mini will run for about 18 hours.

The InfiRay Outdoor Mini ML19 is backed by iRayUSA's 5-year transferable warranty, so buy with confidence that you will be using this unit for years to come.

Primary Features

  • 384 × 288 Resolution
  • 17 Micron Pixel Pitch
  • 50 Hz Frame Rate
  • <50 MK Thermal Sensitivity
  • 19mm Objective Lens
  • 19.0 x 15.0 Degree Field of View
  • 1.0x Optical Magnification
  • 8x Digital Zoom
  • Adjustable Focus
  • Multiple Color Pallets
  • External Power via USB-C
  • 5 Year Warranty

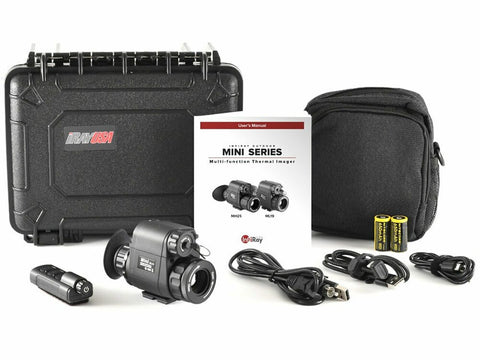

Items Included

  • InfiRay Outdoor ML19 Thermal Optic
  • Eyecup
  • Carry Case
  • 16340 Rechargeable Battery & Charger
  • Lens Cap
  • Operator's Manual
  • Video/Power USB-C Cable

For manufacturer specifications or other information, please click here

About iRAY Thermal Sensors

IRAY technology has been developing and producing infrared FPA detectors, thermal cores, and other thermal products outside of the US for more than a decade. IRay has completely independent intellectual property rights and is committed to providing professional thermal imaging solutions across the globe. More than 50% of IRay's employees are R&D engineers and IRay has been awarded 219 technical patents.
