AB Night Vision MGA

AB Night Vision MGA

PLEASE INQUIRE FOR STOCK STATUS BEFORE PLACING YOUR ORDER

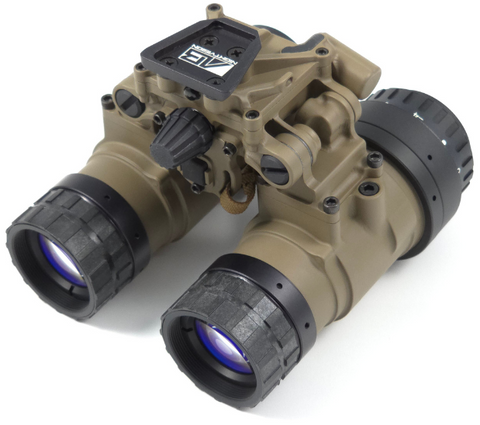

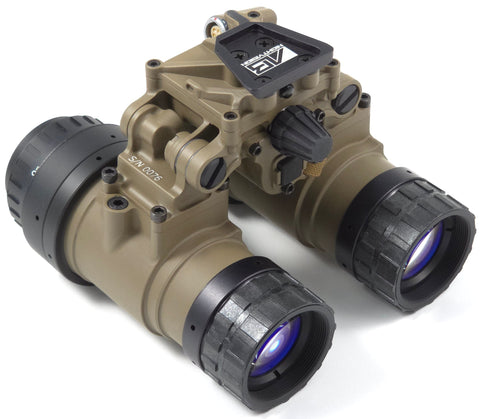

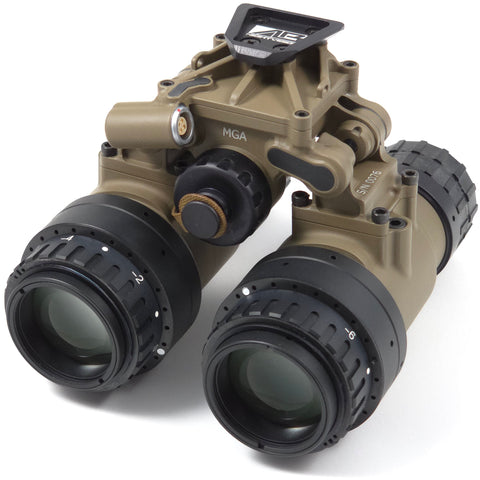

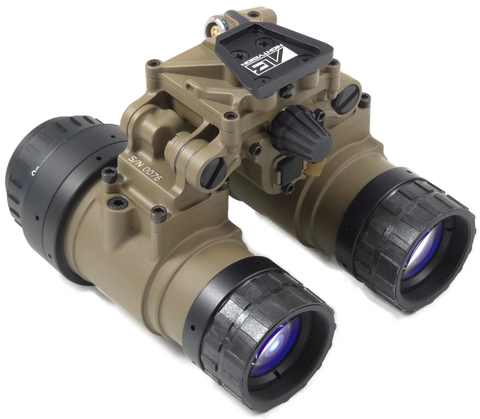

The AB Night Vision MGA (Manual Gain Articulating) is designed to deliver the rugged durability of the RNVG-A platform while adding manual gain control, allowing the user to adjust image brightness in changing lighting conditions. Built for demanding professional and civilian use, the MGA combines proven durability with enhanced user control in a compact articulating night vision binocular system.

While most BNVDs (Binocular Night Vision Devices) are built using polymer construction, the MGA features a precision CNC-machined billet 7075 aluminum chassis, providing exceptional structural strength and exceeding MIL-STD-810H durability testing standards.

The dual articulating pod design allows the user to operate the system with either one or both eyes. This is particularly useful when operating a thermal optic or passive aiming device while maintaining night vision on the opposite eye. The articulating pods also allow the unit to stow tightly against the helmet for a lower profile when entering vehicles or operating in confined spaces. Individual pods automatically power off when rotated upward to eliminate back splash and help protect the image intensifier tubes.

The MGA introduces manual gain adjustment, allowing the user to fine-tune image brightness to match changing ambient light conditions. A rotary control switch manages both power and manual gain adjustment, while a dedicated push button activates the onboard IR illuminator. Automatic brightness protection and auto-gated circuitry help maintain optimal image quality and tube protection.

The housing is finished with a media-blasted non-reflective surface and hard anodizing for durability. Power is supplied by a single CR123A battery providing up to 30 hours of continuous operation, while an integrated LEMO external power port allows connection to an auxiliary battery pack for extended runtime.

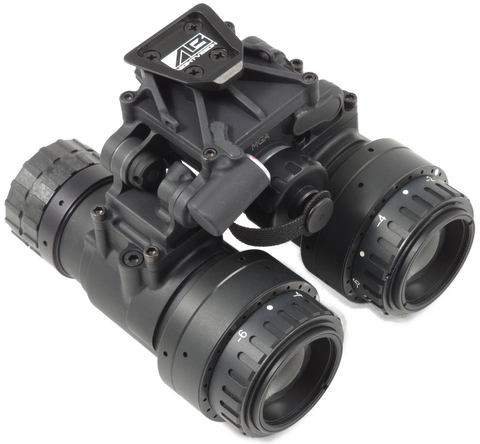

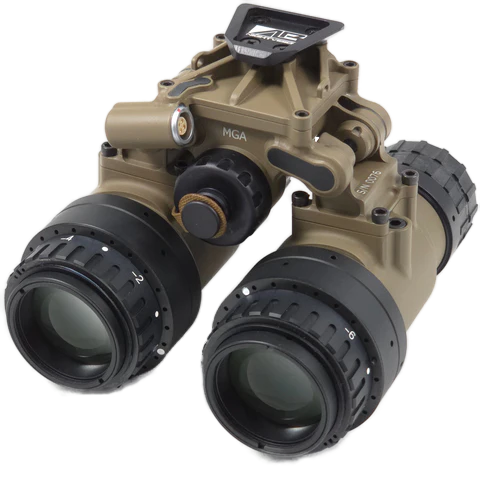

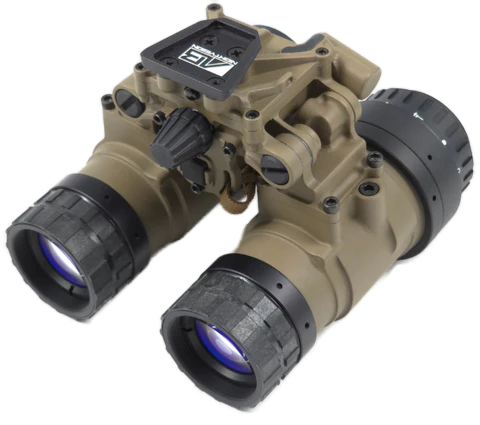

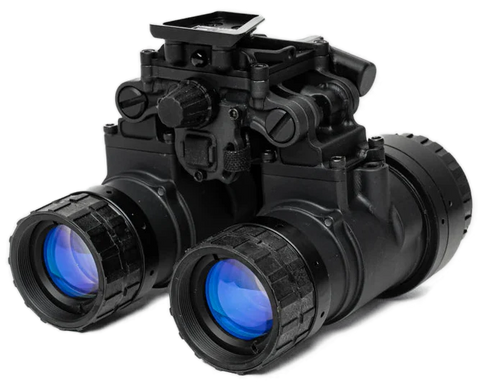

The MGA housing is available in Anodized Matte Black as well as Coyote Cerakote finishes.

Image Intensifier Tube Options

Night Vision Outfitters offers several image intensifier options for this device, allowing customers to select the performance level and price point that best fit their needs.

All of our units are assembled using high-quality, meticulously-selected, brand-new tubes with strict cosmetic blemish and FOM tolerances to ensure excellent quality.

For L3Harris and Elbit tubes, individual data sheets will be provided via email for customer approval prior to shipment. Please note: L3Harris and Elbit tubes are manufactured in the USA, while NNVT tubes are manufactured in the PRC.

L3Harris Unfilmed White Phosphor

L3Harris unfilmed tubes represent the benchmark for Gen 3 night vision technology and excel in extremely dark environments with little or no ambient light. All L3 tubes we use are “UA” Aviation Grade, meaning they meet L3Harris’ most stringent cosmetic and performance tolerances.

L3Harris SuperGain Unfilmed White Phosphor

SuperGain tubes represent the most premium image intensifier technology currently available. While typical filmless tubes produce 40,000–80,000 fL/fc luminance gain, SuperGain tubes commonly reach 100,000–120,000 fL/fc, producing a brighter image and improved performance in the darkest conditions.

Elbit Systems USA Thin-Film White Phosphor

Elbit thin-film tubes deliver excellent Gen 3 performance at a slightly lower price point than L3 tubes. They perform particularly well in urban or mixed-light environments, making them a great option for users seeking a balance of performance and value.

North Night Vision Technology (NNVT) White Phosphor

NNVT tubes offer a more affordable entry point into night vision while still producing a strong image in moderate ambient light environments. NNVT tubes are a high-quality, high-FOM Gen 2 technology and can be considered comparable to early Gen 3 performance levels. Please note: NNVT tubes are produced in the PRC, while L3Harris and Elbit tubes are produced in the USA.

Objective and Eyepiece Lens Options

Standard Mil-Spec Optics

High-quality Mil-Spec objective lenses and eyepiece optics are used as our standard optics and provide excellent image quality, clarity, and light transmission. These are typically manufactured by Noctis (Carson) or Night Vision Devices.

Rochester Precision Optics "RPO"

Rochester Precision Optics (RPO) ultralight objective lenses and eyepieces are available as an upgraded option. RPO optics are approximately 20% lighter than standard Mil-Spec optics while maintaining the same excellent optical performance.

Photonis Defense Boomslang Wide FOV

Photonis Defense Boomslang 50° wide-angle field-of-view (FOV) lenses increase the user’s viewable area by approximately 25% compared to standard Mil-Spec optics. Unlike earlier wide-FOV lenses, Boomslangs maintain no visible fisheye distortion with only minor chromatic aberration at the extreme edge of the image. Boomslang optics also reduce system weight by approximately 25–30 grams per eye compared to standard Mil-Spec optics.

ACT in Black Wide FOV

ACT in Black 50° wide-angle field-of-view (FOV) lenses increase the user’s viewable area by approximately 35% compared to standard Mil-Spec optics. These lenses maintain little to no fisheye distortion with only minor chromatic aberration at the edge of the image, while adding only approximately 20 grams per lens compared to standard Mil-Spec optics.

Warranty Information

The AB Night Vision MGA is built to extremely rugged specifications and designed to withstand harsh professional use. These units carry a five-year housing warranty along with a two-year warranty on the image intensifier tubes and overall system, so buy with confidence knowing you’ll be able to enjoy this unit for years to come.

System Features

  • Ultra-Durable Solid Billet 7075 Aluminum Housing Construction
  • Compatible with Mil-Spec PVS-14 Pattern Optics
  • Compatible with Multiple Image Intensifier Tube Technologies
  • Dual Articulating Pod Design
  • Individual Pod Auto Shutoff When Articulated
  • Aluminum Dovetail Helmet Mount Interface
  • Single CR123A Battery Power – Up to 30 Hours Runtime
  • Integrated LEMO External Power Port for Extended Operation
  • Manual Gain Control
  • Auto-Gated Power Supply
  • Onboard IR Illuminator with Indicator
  • Low Battery Indicator
  • Rotary Power / Manual Gain Control
  • Nitrogen-Purged Housing
  • Waterproof to 66 ft for 2 Hours
  • Available in Anodized Matte Black or Coyote Cerakote
  • Five-Year Housing Warranty
  • Two-Year Image Intensifier Tube / System Warranty
  • Made in USA

Performance Specifications

  • Magnification: 1×
  • Field of View: 40° (Standard Mil-Spec Optics)
  • Focus Range: 9.8″ to Infinity
  • Interpupillary Distance (IPD) Adjustment: 47–80 mm
  • Eye Relief: 25 mm
  • Gain Control: Manual Gain Adjustment
  • Housing Weight (No Optics): 7.4 oz
  • System Weight by Optic Configuration:
  • Mil-Spec Optics – 20.45 oz
  • Rochester Precision Optics (RPO) – 17.35 oz
  • Photonis Defense Boomslang 50° – 18.45 oz
  • ACT in Black 50° – 21.95 oz

Items Included

  • AB Night Vision MGA Night Vision Binocular
  • Hard Carrying Case
  • Image Intensifier Tube Data Sheets
