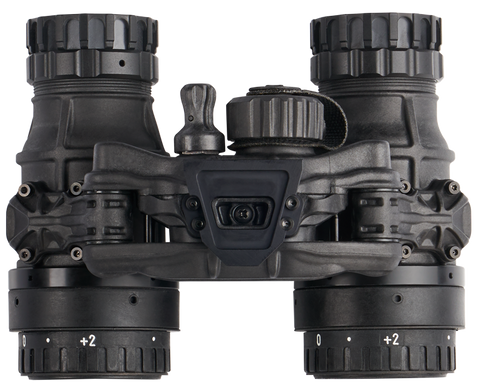

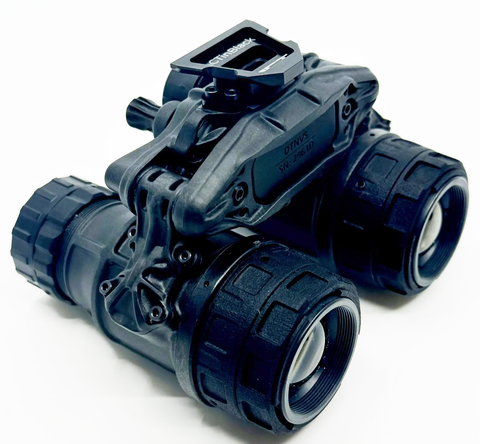

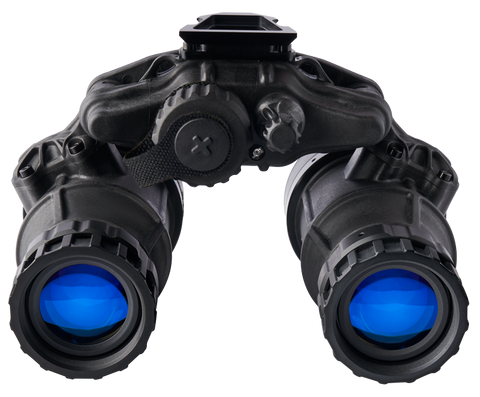

ACT in Black DTNVS-MG Binocular
PLEASE INQUIRE FOR STOCK STATUS BEFORE PLACING YOUR ORDER
The ACT in Black DTNVS-MG (Dual Tube Night Vision System – Manual Gain) is designed to deliver one of the lightest-weight, most advanced articulating night vision binocular systems available. Built around a fiber-reinforced polymer housing, the DTNVS-MG prioritizes weight reduction, simplicity, and reliability while adding manual gain control for enhanced performance in varying light conditions.
Unlike heavier aluminum housings, the DTNVS-MG utilizes a reinforced composite construction that significantly reduces overall system weight, minimizing user fatigue during extended helmet-mounted use. The low-profile design keeps the unit tight to the helmet, improving balance and comfort.
The dual articulating pod design allows users to operate the system with either one or both eyes. Each pod can be independently rotated out of the field of view and will automatically shut off when articulated upward, preserving battery life and reducing back splash.
The DTNVS-MG utilizes a rotary-style control interface similar to the PVS-14, with the added ability to manually adjust image brightness through onboard gain control. This allows the user to fine-tune image intensity based on ambient lighting conditions, reducing eye fatigue and improving image clarity in dynamic environments. An onboard IR illuminator provides additional capability in extremely low-light conditions.
Power is supplied by a single CR123A battery, providing approximately 25–35 hours of operation depending on usage. The DTNVS-MG eliminates the need for an external battery port, reducing potential failure points while simplifying the system.
Image Intensifier Tube Options
Night Vision Outfitters offers several image intensifier options for this device, allowing customers to select the performance level and price point that best fit their needs.
All of our units are assembled using high-quality, meticulously-selected, brand-new tubes with strict cosmetic blemish and FOM tolerances to ensure excellent quality.
For L3Harris and Elbit tubes, individual data sheets will be provided via email for customer approval prior to shipment. Please note: L3Harris and Elbit tubes are manufactured in the USA, while NNVT tubes are manufactured in the PRC.
L3Harris Unfilmed White Phosphor
L3Harris unfilmed tubes represent the benchmark for Gen 3 night vision technology and excel in extremely dark environments with little or no ambient light. All L3 tubes we use are “UA” Aviation Grade, meaning they meet L3Harris’ most stringent cosmetic and performance tolerances.
L3Harris SuperGain Unfilmed White Phosphor
SuperGain tubes represent the most premium image intensifier technology currently available. While typical filmless tubes produce 40,000–80,000 fL/fc luminance gain, SuperGain tubes commonly reach 100,000–120,000 fL/fc, producing a brighter image and improved performance in the darkest conditions.
Elbit Systems USA Thin-Film White Phosphor
Elbit thin-film tubes deliver excellent Gen 3 performance at a slightly lower price point than L3 tubes. They perform particularly well in urban or mixed-light environments, making them a great option for users seeking a balance of performance and value.
North Night Vision Technology (NNVT) White Phosphor
NNVT tubes offer a more affordable entry point into night vision while still producing a strong image in moderate ambient light environments. NNVT tubes are a high-quality, high-FOM Gen 2+ technology and can be considered comparable to early Gen 3 performance levels. Please note: NNVT tubes are produced in the PRC, while L3Harris and Elbit tubes are produced in the USA.
Objective and Eyepiece Lens Options
Standard Mil-Spec Optics
High-quality Mil-Spec objective lenses and eyepiece optics are used as our standard optics and provide excellent image quality, clarity, and light transmission. These are typically manufactured by Noctis (Carson) or Night Vision Devices.
Rochester Precision Optics "RPO"
Rochester Precision Optics (RPO) ultralight objective lenses and eyepieces are available as an upgraded option. RPO optics are approximately 20% lighter than standard Mil-Spec optics while maintaining the same excellent optical performance.
Photonis Defense Boomslang Wide FOV
Photonis Defense Boomslang 50° wide-angle field-of-view (FOV) lenses increase the user’s viewable area by approximately 25% compared to standard Mil-Spec optics. Unlike earlier wide-FOV lenses, Boomslangs maintain no visible fisheye distortion with only minor chromatic aberration at the extreme edge of the image. Boomslang optics also reduce system weight by approximately 25–30 grams per eye compared to standard Mil-Spec optics.
ACT in Black Wide FOV
ACT in Black 50° wide-angle field-of-view (FOV) lenses increase the user’s viewable area by approximately 35% compared to standard Mil-Spec optics. These lenses maintain little to no fisheye distortion with only minor chromatic aberration at the edge of the image, while adding only approximately 20 grams per lens compared to standard Mil-Spec optics.
Warranty Information
The ACT in Black DTNVS-MG is built for durability and lightweight performance. These units carry a five-year housing warranty along with a two-year warranty on the image intensifier tubes and overall system, so buy with confidence knowing you’ll be able to enjoy this unit for years to come.
System Features
- Lightweight Reinforced Polymer Housing Construction
- Compatible with Mil-Spec PVS-14 Pattern Optics
- Compatible with Multiple Image Intensifier Tube Technologies
- Dual Articulating Pod Design
- Individual Pod Auto Shutoff When Articulated
- Aluminum Dovetail Helmet Mount Interface
- Manual Gain Control for User-Adjustable Brightness
- Single CR123A Battery Power – Up to 25–30 Hours Runtime
- No External Battery Port (Reduced Failure Points)
- Auto-Gated Power Supply
- Onboard IR Illuminator with Indicator
- Low Battery Indicator
- Rotary Style Power / IR / Gain Control
- Nitrogen-Purged Housing
- Waterproof to 66 ft for 2 Hours
- Matte Black Finish
- Five-Year Housing Warranty
- Two-Year Image Intensifier Tube & Overall System Warranty
Performance Specifications
- Magnification: 1×
- Field of View: 40° (Standard Mil-Spec Optics)
- Focus Range: 9.8″ to Infinity
- Interpupillary Distance (IPD) Adjustment: 47–80 mm
- Eye Relief: 25 mm
- Housing Weight (No Optics): 15.6 oz
System Weight by Optics Configuration
- Mil-Spec Optics – 20.0 oz
- Rochester Precision Optics (RPO) – 17.0 oz
- Photonis Defense Boomslang 50° – 18.0 oz
- ACT in Black 50° – 21.5 oz
Items Included
- ACT in Black DTNVS-MG Night Vision Binocular
- Hard Carrying Case
- Image Intensifier Tube Data Sheets
