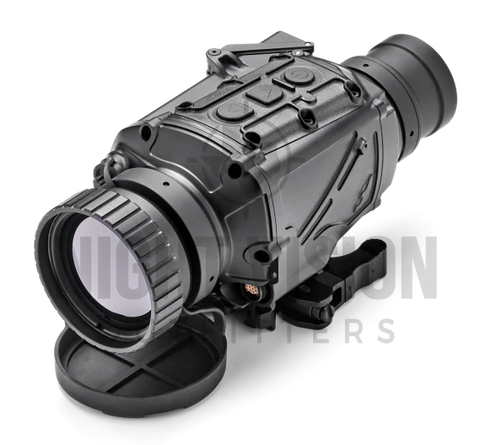

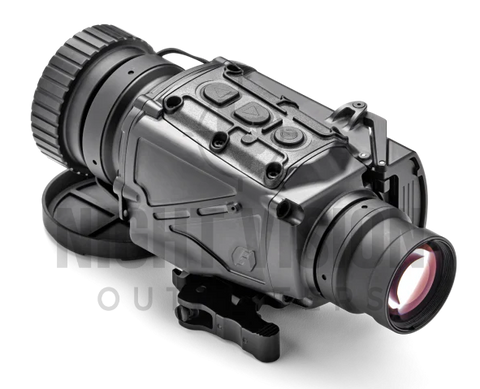

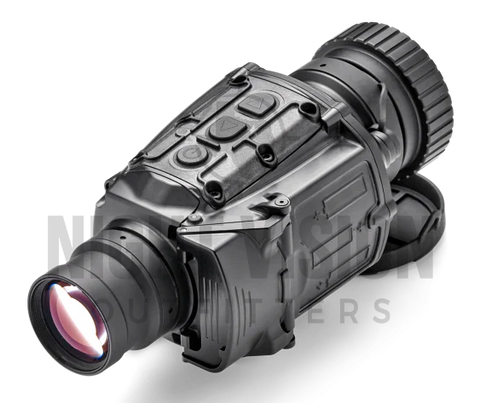

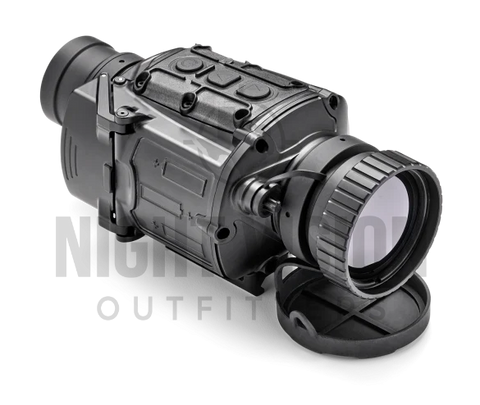

EOTECH ClipIR-LR MK2 1280 Thermal Clip-On

The EOTECH® MK2 ClipIR-LR is a long-range thermal clip-on weapon sight designed to convert a standard daytime optic into a high-performance thermal system without affecting zero. Mounted forward of the day scope, the ClipIR-LR allows the user to retain their existing optic, reticle, and ballistic solution while adding advanced thermal imaging capability.

Designed for use with mid-magnification day optics (typically up to 4–10×), the ClipIR-LR provides strong detection, observation, and engagement capability in all lighting conditions. Unlike image intensifier-based systems, thermal technology allows the user to detect heat signatures regardless of ambient light, providing a significant advantage in complete darkness, obscured environments, and challenging weather conditions.

The system features a high-performance 1280 × 1024 thermal sensor with a 12 µm pixel pitch, delivering detailed imagery and strong target definition. Advanced image processing algorithms enhance clarity and contrast, allowing users to quickly identify targets at extended distances.

The ClipIR-LR mounts quickly and securely to standard Picatinny (1913) rails and maintains the host optic’s ballistic zero, eliminating the need for re-zero when transitioning between day and thermal use.

Power is supplied by three AA batteries, providing reliable runtime with a widely available power source. The system also includes onboard image and video recording, along with WiFi and Bluetooth connectivity for expanded functionality and device integration.

Thermal Sensor Configuration

This system utilizes a 1280 × 1024 resolution thermal sensor with a 12 µm pixel pitch, providing high-resolution thermal imaging and strong target detection capability.

Advanced image enhancement algorithms are integrated to improve contrast, clarity, and overall image quality in a wide range of environmental conditions.

Warranty Information

The EOTECH MK2 ClipIR-LR is built to military specifications and designed for professional use. These units are backed by a two-year warranty on the overall system along with a three-year warranty on the housing and its components, so buy with confidence knowing the system is designed for reliable long-term performance.

System Features

• Thermal Clip-On Weapon Sight
• Maintains Zero of Host Optic
• Optimized for Mid-Range Magnification Optics (4–10×)
• 50mm Objective Lens
• 1280 × 1024 Thermal Sensor
• 12 µm Pixel Pitch
• 1× Base Magnification
• 2× and 4× Digital Zoom
• Advanced Image Processing Algorithms
• Image and Video Recording
• WiFi and Bluetooth Connectivity
• Quick-Attach 1913 Picatinny Rail Mount
• Three AA Battery Power (Rechargeable Lithium Compatible)
• Rugged Housing Construction designed for Professional Use
• MIL-STD-810G / MIL-STD-461E Rated
• IP67 Waterproof and Dust-Proof
• 3-Year Warranty

Performance Specifications

• Magnification: 1× (Clip-On)
• Field of View: 8.7°
• Focus Range: 2 m to Infinity
• Sensor Resolution: 1280 × 1024
• Pixel Pitch: 12 µm
• System Weight: 23.6 oz (1.48 lbs)
• Battery Type: 3 × AA (Alkaline, Lithium, or Rechargeable)
• Runtime: >8 Hours

Items Included

• EOTECH MK2 ClipIR-LR Thermal Clip-On Device
• Protective Case
• Operator Manual
• Lens Cleaning Kit
