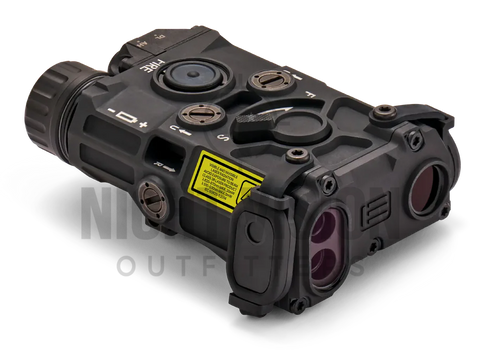

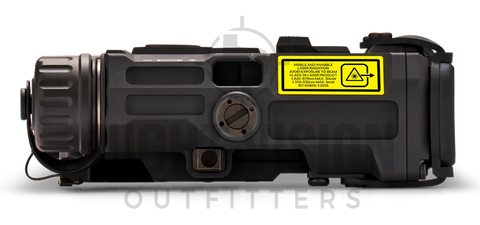

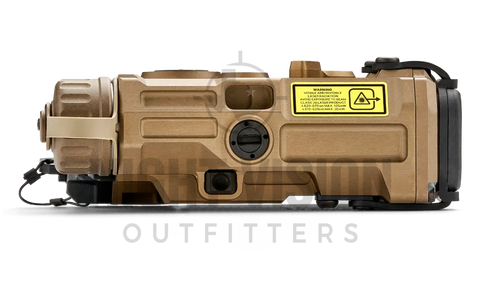

Eotech OGL-C Laser Aiming System

PLEASE INQUIRE FOR CURRENT LEAD TIME BEFORE PLACING YOUR ORDER

The EOTECH® OGL (On-Gun Laser) Commercial model is a compact, multi-function aiming laser system designed to provide visible and infrared targeting capability in a durable, streamlined package. Built for professional and civilian users, the OGL delivers reliable performance with an intuitive control layout and modern feature set.

The system integrates a visible green aiming laser, infrared (IR) aiming laser, and IR illuminator into a single compact unit. The visible laser provides rapid target acquisition in daylight or transitional lighting, while the IR laser and illuminator are optimized for use with night vision systems.

The IR illuminator utilizes a high-performance VCSEL diode, producing a clean, consistent beam with adjustable divergence. A unique sliding lever allows the user to quickly transition from focused spot to wide flood, enabling rapid adaptation to changing engagement distances and environments.

The visible and IR aiming lasers are optically paired, allowing for simplified zeroing and consistent point-of-impact alignment between modes. Precision adjustment dials provide repeatable elevation and windage adjustments for both laser systems.

The OGL features a compact, all-aluminum housing designed for durability while maintaining a low-profile footprint comparable in size to a deck of playing cards. A raised, tactile fire button and intuitive mode selector switch allow for fast activation and easy operation under stress or low-light conditions.

Power is supplied by a single CR123 battery, providing up to 9 hours of runtime. The system includes a crane-style remote port and ships with a Modlite 7” remote switch, allowing flexible activation options for a wide range of weapon setups.  Addtionally, the OGL is available in both matte black and flat dark earth (tan) housing options.

Laser Configuration

This system features a visible green aiming laser, infrared (IR) aiming laser, and IR illuminator in a single integrated unit.

The commercial model is eye-safe and designed for civilian use while maintaining strong performance across all operating modes.

Additionally, a full-power MIL / LE only version is available for department purchase. Please reach out to us at sales@nightvisionoutfitters.com if your department would like a quote for these units.

Warranty Information

The EOTECH OGL Commercial is built to professional standards and designed for long-term durability. These units are backed by a three-year manufacturer warranty, so buy with confidence knowing the system is designed for reliable, long-term performance under rugged, professional use.

System Features

• Multi-Function Aiming Laser System
• Visible Green Laser, IR Laser, and IR Illuminator
• Optically Paired Visible and IR Lasers for Easy Zeroing
• VCSEL IR Illuminator
• Adjustable Beam Divergence (Spot to Flood)
• Ergonomic Sliding Lever for Illuminator Adjustment
• Single CR123 Battery Power
• Up to 9 Hour Runtime
• Compact, Low-Profile Design
• All-Aluminum Housing Construction
• Raised, Tactile Fire Button
• Intuitive Mode Selection Switch
• Crane-Type Remote Port
• Includes Modlite 7” Remote Switch

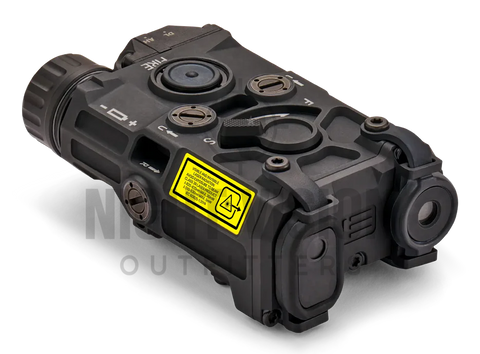

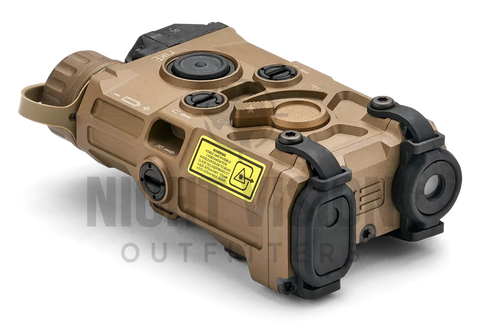

• Protective Sliding Lens Covers
• Integrated Pattern Generators

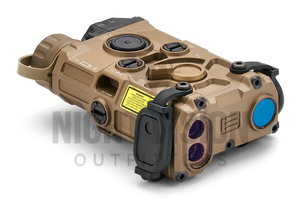

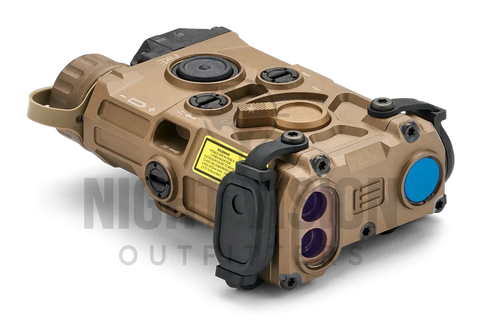

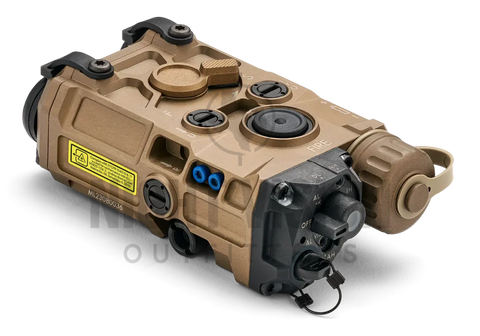

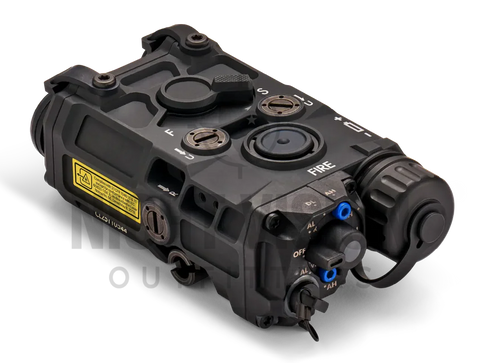

• Matte Black or Flat Dark Earth (Tan) Housing Color Options
• 3-Year Warranty

Performance Specifications

• Visible Laser Type: Green
• Visible Laser Wavelength: 515 nm
• IR Laser Wavelength: 830 nm
• IR Illuminator Wavelength: 850 nm
• Visible Laser Output: ≤ 0.5 mW (Eye-Safe)
• IR Laser Output: ≤ 0.67 mW (Eye-Safe)
• IR Illuminator Output: ≤ 30 mW
• Beam Divergence (Laser): < 0.5 mrad
• Beam Divergence (Illuminator):
• Spot ≥ 30 mrad
• Flood ≥ 105 mrad
• System Weight: 8 oz (227 g)
• Dimensions: 4.1” × 2.3” × 1.5”
• Battery Type: CR123 Lithium
• Runtime: Up to 9 Hours

Items Included

• EOTECH OGL Commercial Laser Aiming Device
• Modlite 7” Remote Switch
• Protective Covers
• Pattern Generators
• Operator Manual
