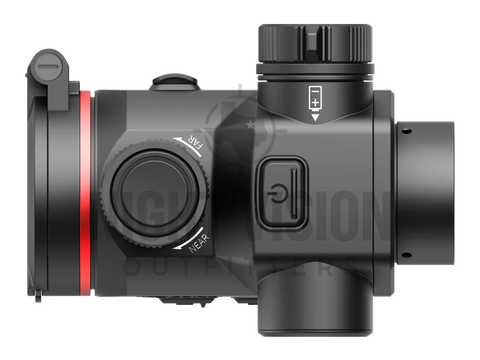

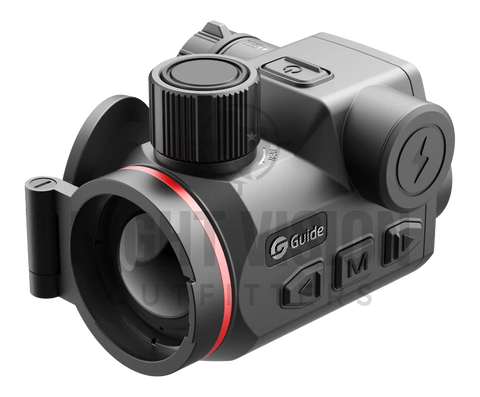

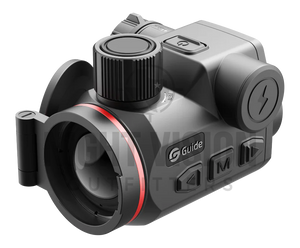

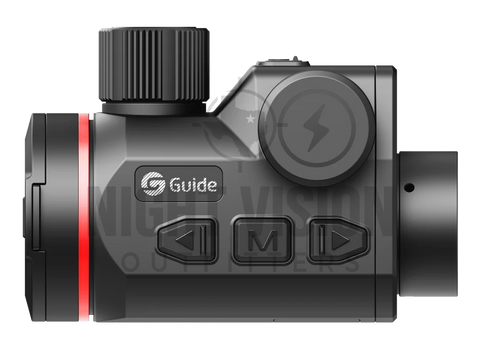

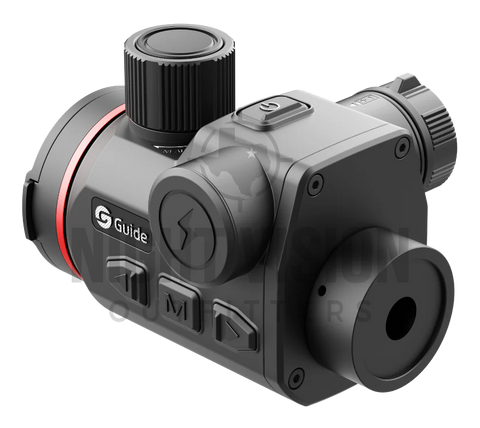

GUIDE Orion O435CS 35mm 400x300 Clip-On

PLEASE INQUIRE FOR STOCK STATUS BEFORE PLACING YOUR ORDER

The GUIDE USA ORION O435CS is a compact thermal clip-on designed to deliver strong image quality, lightweight portability, and advanced thermal performance in a versatile multi-role platform. Built around a 400×300 thermal sensor and paired with a 35mm germanium objective lens, the O435CS is ideal for hunters and outdoor users needing a high-performance thermal clip-on unit in a compact package, and at an affordable price.

At the core of the system is a 12μm thermal sensor with ≤15 mK NETD sensitivity, allowing the unit to produce detailed imagery with excellent contrast and target identification in difficult environmental conditions. Combined with GUIDE’s advanced image processing algorithms, the system delivers strong image clarity and detail across all conditions.

With a 35mm F/0.9 germanium objective lens and base magnification of 1.0x, the O435CS is optimized to work with daytime optics up to 10x magnification.

This platform is designed to pair with the user’s preference of daytime optic while preserving the shooter’s preferred reticle, eye relief, and ballistic planning. Unlike most thermal clip-ons, the O435CS also features a unique dedicated monocular mode allowing the unit to function as a completely standalone handheld thermal monocular without requiring additional accessories or adapters. This provides users with both clip-on and handheld capability in a single thermal system.

The O435CS utilizes a compact, durable and ergonomic housing optimized for both handheld and clip-on use for use in demanding outdoor environments. The lightweight design makes the unit easy to carry for extended periods while remaining highly capable for both observation and weapon-mounted applications. GUIDE offers multiple adapter ring sizes for compatibility with a wide range of daytime optics based on objective housing diameter. Additionally, picatinny rail mounting adapters, along with other options are also available.

The unit is powered by a replaceable 18500 rechargeable battery system, providing up to seven hours of operating time, along with the convenience of quickly swapping batteries as needed.

The O435CS features IP67 rated environmental protection for reliable operation in harsh weather and harsh environments.

Warranty Information

GUIDE USA thermal optics are backed by a comprehensive factory warranty, including a 10-year warranty on the thermal sensor and detector, a 5-year warranty on the overall system, and a 2-year warranty on any accessories.  Additionally, GUIDE USA provides a Texas-Based repair facility, and guarantees repair or replacement within a week once received. So buy the ORION O435CS with confidence knowing you’ll be able to enjoy this unit for years to come.

Features

• 400×300 Thermal Sensor Resolution
• 12μm Pixel Pitch
• 50Hz Frame Rate
• ≤15 mK NETD Thermal Sensitivity
• 35mm F/0.9 Germanium Objective Lens
• 1.0× Base Magnification
• 7.9° Field of View
• 1,950 Yard Detection Range
• 0.39’’ 1024×768 AMOLED Display
• Advanced Image Processing Algorithms
• Dedicated Standalone Monocular Mode
• Clip-On and Handheld Capability in One System
• Compatible with Daytime Optics up to 10× Magnification
• Multiple Mounting Adapter Options are Available
• Compact Ergonomic Housing Design
• Replaceable 18500 Rechargeable Battery System
• USB-C External Power Input
• IP67 Water and Dust Ingress Rating
• Compact Lightweight Design
• 10-Year Thermal Sensor & Detector Warranty
• 5-Year Overall System Warranty
• 2-Year Accessory Warranty

Items Included

• GUIDE USA ORION O435CS Thermal Clip-On
• 18500 Batteries x 2
• Battery Charger
• USB-C Cable
• Wrist Strap
• Carrying Case
• Operator Manual
