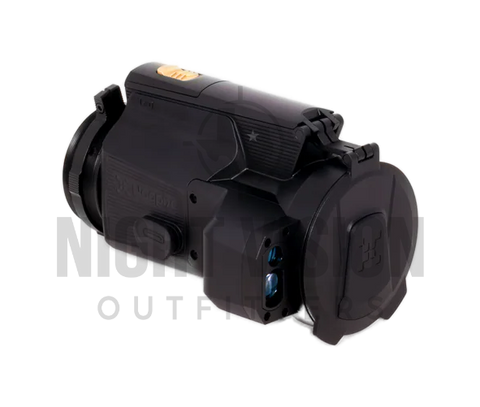

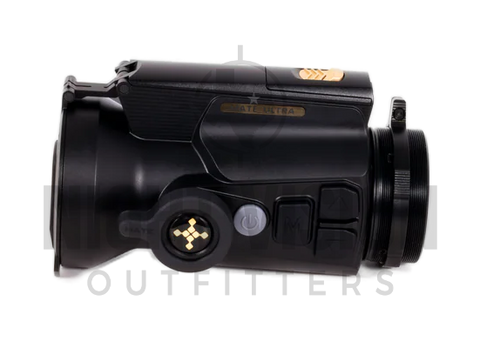

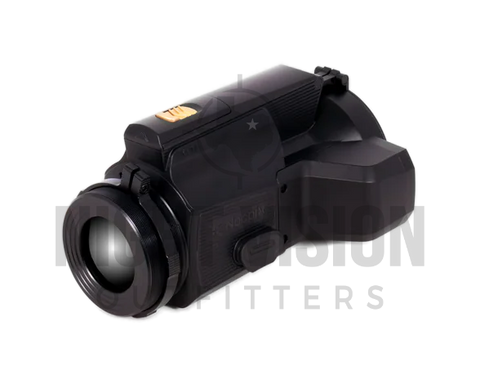

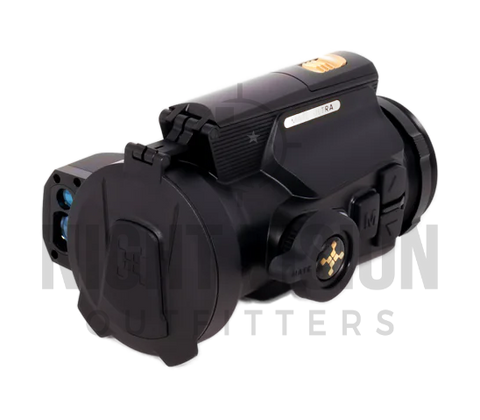

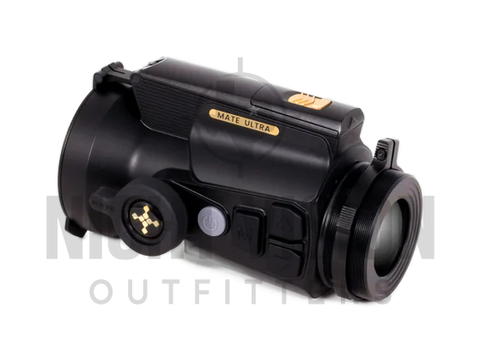

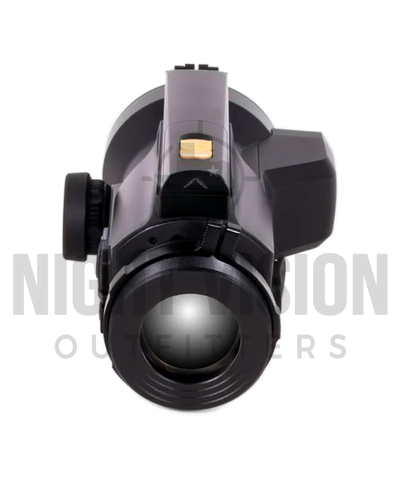

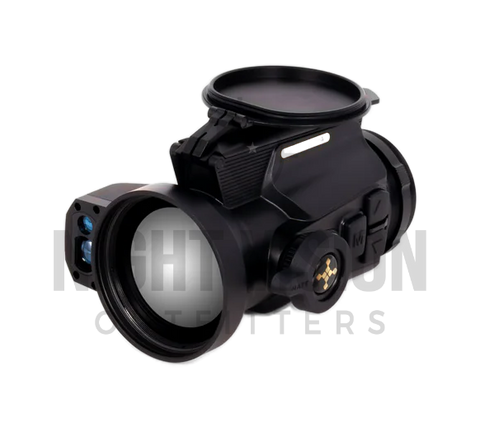

NOCPIX MATE Ultra LRF 1280 60mm Clip-On

PLEASE INQUIRE FOR STOCK STATUS BEFORE PLACING YOUR ORDER

The NOCPIX MATE Ultra represents the next generation of thermal clip-on technology, allowing hunters to convert their existing daytime optic into a powerful thermal system without changing their shooting setup. Built around a 1280×1024 high-resolution thermal sensor and paired with a massive 60mm germanium objective lens, the MATE Ultra is engineered for users demanding maximum image quality, exceptional detail, and long-range thermal performance in a premium clip-on platform.

At the core of the system is a high-performance 12μm thermal sensor with ≤15 mK NETD sensitivity, allowing the MATE Ultra to capture subtle heat signatures with exceptional clarity and contrast in difficult environmental conditions. Combined with NOCPIX Reality+ image processing technology, the system delivers improved contrast, sharper edge detail, reduced image noise, and enhanced target separation throughout the entire magnification range while maintaining a clear and stable image during zoom changes.

With a 60mm F/1.0 germanium objective lens and true 1.0× optical magnification optimized specifically for clip-on use, the MATE Ultra is designed to pair with your preferred magnified daytime optics while maintaining a clear sight picture and minimal point-of-impact shift. The adjustable heads-up display automatically scales throughout the magnification range to provide a consistent viewing experience across multiple daytime optic configurations.

Multiple zeroing profiles allow users to move the system between rifles while maintaining repeatable point-of-impact retention. The compact clip-on design also supports multiple mounting configurations depending on user preference and optic setup.  It includes a universal objective bell mounting system but is also compatible with the iRay / American Defense AC03 QD mount for picatinny mounted applications.

An integrated 1,300 yard laser rangefinder provides real-time distance measurements with ±1 yard accuracy, while the onboard ballistic calculator displays bullet drop values based on rangefinder input data and user-customized cartridge profiles for confident shot placement at extended distances.

The MATE Ultra features a lightweight magnesium alloy housing engineered to withstand heavy recoil and harsh field conditions while reducing overall system weight. A top-loading 18650 battery compartment allows for fast and convenient battery swaps in the field using widely available rechargeable batteries. Recoil-activated video recording automatically captures footage before and after each shot, including slow-motion shot capture functionality.  Other features include onboard video and image capture, multiple color pallets, NOCPIX App compatibility, and simplified controls.

Warranty Information

The MATE Ultra is backed by the NOCPIX “5 x 5” warranty which provides five year transferable warranty coverage along with a five day turnaround guarantee if service is ever required.  NOCPIX products are distributed and supported by iRayUSA in Lewisville, TX, so buy with confidence that you’ll be able to enjoy trouble-free use for years to come.

Features

• 1280×1024 Thermal Sensor Resolution
• 12μm Pixel Pitch
• 60Hz Frame Rate
• ≤15 mK NETD Thermal Sensitivity
• 60mm F/1.0 Germanium Objective Lens
• Reality+ Advanced Image Processing Technology
• Enhanced Target Separation and Image Detail
• 1.0× Optical Base Magnification
• 14.7° × 11.7° Field of View
• 3,390 Yard Detection Range
• Integrated 1,300 Yard Laser Rangefinder
• Integrated Ballistic Calculator
• 1920×1200 High-Resolution AMOLED Display
• Designed for Forward Mounting in Front of Day Optics
• Multiple Zeroing Profiles for Multi-Weapon Use
• Universal Scope Mounting Adapter
• Compatible with IRAY / American Defense AC-03 Picatinny Mount (1.5” Centerline)
• Recoil-Activated Video Recording
• Onboard Video and Image Recording (64GB)
• NOCPIX Mobile App Connectivity
• USB-C External Power Input
• Top-Loading 18650 Rechargeable Battery System
• Magnesium Alloy Housing
• IP67 Water and Dust Ingress Rating
• Recoil Rated up to .300 Win Mag / 7mm Mag
• Five-Year “5x5” Transferable Factory Warranty

Items Included

• NOCPIX MATE Ultra Thermal Clip-On
• 18650 Rechargeable Batteries
• Battery Charger
• USB-C Cable
• Universal Scope Mounting Adapter
• Operator Manual
