Nocturn Chimera Panoramic Goggle

PLEASE INQUIRE FOR STOCK STATUS BEFORE PLACING YOUR ORDER

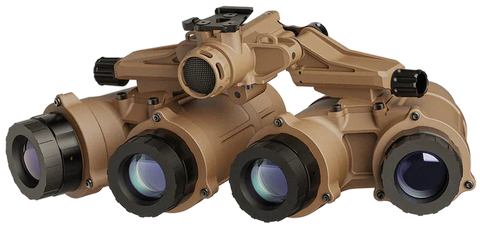

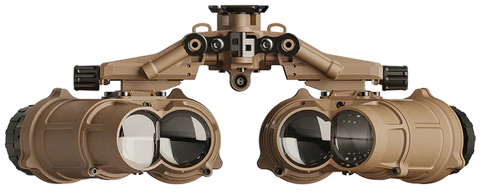

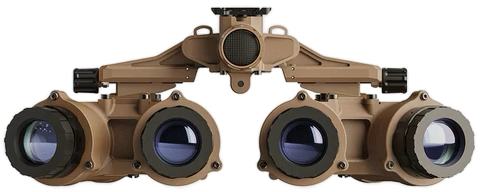

The Nocturn Industries Chimera UAPNVG (Ultralight Articulating Panoramic Night Vision Goggle) represents the next evolution in panoramic night vision systems, combining quad-tube panoramic capability with a patented articulating housing design. Quad-tube panoramic night vision systems expand the user’s field of view to approximately 100°, delivering a substantial advantage in situational awareness over standard dual-tube binoculars.

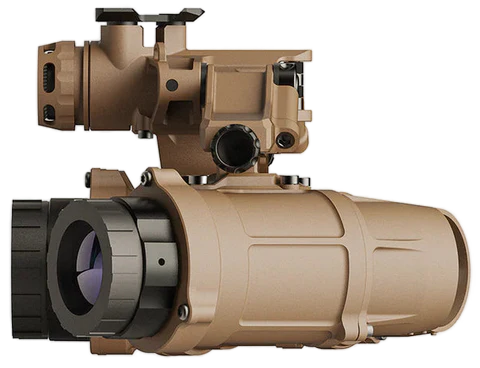

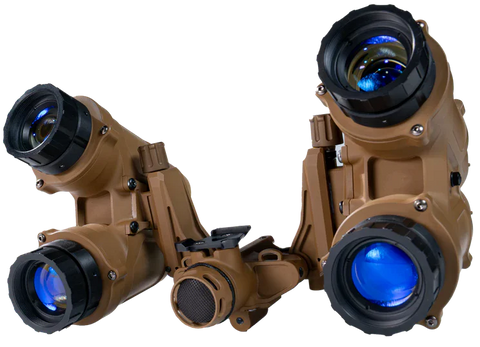

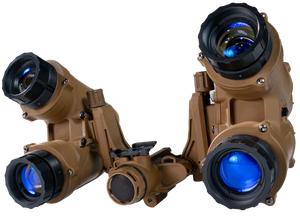

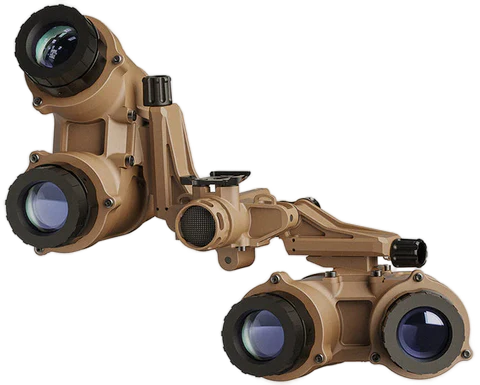

Unlike traditional fixed panoramic systems, the Chimera is the first articulating quad-tube night vision goggle, allowing each optical pod to stow rearward toward the helmet. This creates an ultra-low-profile footprint comparable to articulating binocular systems, significantly improving mobility in vehicles, confined spaces, and dense terrain while reducing snag hazards.

The articulating design also shifts the system’s center of gravity closer to the helmet mount, reducing forward weight and minimizing neck fatigue during extended use. Each pod can be operated independently, allowing users to maintain night vision while integrating thermal optics or other passive aiming devices as needed.

The Chimera is constructed using advanced lightweight materials, including magnesium and high-strength components, delivering an optimal balance of durability and weight savings for professional applications. The system is engineered for demanding environments and exceeds MIL-STD-810H and IP68 performance standards.  The panoramic optical design incorporates precise factory collimation to ensure proper alignment across all four tubes. Additionally, the objective lenses feature lightweight RPO Optics.

Power is supplied via a CR123A (4) external battery pack through a LEMO-style connection, providing extended runtime options and improved system balance when helmet-mounted.

The Chimera delivers true panoramic capability in a modern, articulating platform—offering a substantial increase in situational awareness with improved ergonomics and usability compared to fixed quad-tube systems.

Image Intensifier Tube Options

Night Vision Outfitters offers several image intensifier options for this device, allowing customers to select the performance level and price point that best fit their needs.

All of our units are assembled using high-quality, meticulously-selected, brand-new tubes with strict cosmetic blemish and FOM tolerances to ensure excellent quality.

For L3Harris and Elbit tubes, individual data sheets will be provided via email for customer approval prior to shipment. Please note: L3Harris and Elbit tubes are manufactured in the USA, while NNVT tubes are manufactured in the PRC.

L3Harris Unfilmed White Phosphor

L3Harris unfilmed tubes represent the benchmark for Gen 3 night vision technology and excel in extremely dark environments with little or no ambient light. All L3 tubes we use are “UA” Aviation Grade, meaning they meet L3Harris’ most stringent cosmetic and performance tolerances.

L3Harris SuperGain Unfilmed White Phosphor

SuperGain tubes represent the most premium image intensifier technology currently available. While typical filmless tubes produce 40,000–80,000 fL/fc luminance gain, SuperGain tubes commonly reach 100,000–120,000 fL/fc, producing a brighter image and improved performance in the darkest conditions.

Elbit Systems USA Thin-Film White Phosphor

Elbit thin-film tubes deliver excellent Gen 3 performance at a slightly lower price point than L3 tubes. They perform particularly well in urban or mixed-light environments, making them a great option for users seeking a balance of performance and value.

North Night Vision Technology (NNVT) White Phosphor

NNVT tubes offer a more affordable entry point into night vision while still producing a strong image in moderate ambient light environments. NNVT tubes are a high-quality, high-FOM Gen 2+ technology and can be considered comparable to early Gen 3 performance levels. Please note: NNVT tubes are produced in the PRC, while L3Harris and Elbit tubes are produced in the USA.

Warranty Information

The Nocturn Industries Chimera UAPNVG is built to extremely rugged specifications and designed to withstand harsh professional use. These units carry a lifetime housing warranty along with a two-year warranty on the image intensifier tubes and overall system, so buy with confidence knowing you’ll be able to enjoy this unit for years to come.

System Features

• Quad-Tube Panoramic Night Vision System
• Approx. 97–100° Field of View
• Four Image Intensifier Tubes
• RPO Objective Lenses
• Patented Articulating Panoramic Pod Design
• Independent Pod Articulation
• Individual Pod Auto Shutoff When Articulated
• Ultra-Low Profile Stow Configuration
• Improved Weight Distribution for Reduced Neck Fatigue
• Optimized for Vehicle and Confined Space Operations
• Lightweight Magnesium / Reinforced Housing Construction
• Dovetail Helmet Mount Interface
• External Battery Pack (CR123A x 4)
• External Power Connection via LEMO Port
• Auto-Gated Power Supply
• Low Battery Indicator
• Nitrogen-Purged Housing
• IP68 Rated / MIL-STD-810H Tested
• Flat Dark Earth Housing Color
• Lifetime Housing Warranty
• Two-Year Image Intensifier Tube & Overall System Warranty
• Made in USA

Performance Specifications

• Magnification: 1×
• Field of View: ~97–100°
• Focus Range: 9.8″ to Infinity
• Interpupillary Distance (IPD): Adjustable
• Eye Relief: 25 mm
• System Weight: ~27
