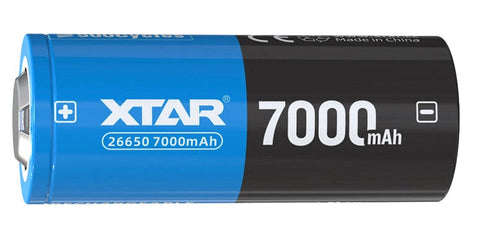

XTAR Button-Top 26650 7000mAh
PLEASE INQUIRE FOR CURRENT STOCK STATUS OR LEAD TIME PRIOR TO ORDERING
The XTAR 26650 7000mAh rechargeable battery is the ideal battery solution for the WAVE ATRIS series of thermal optics, offering increased capacity and extended runtime compared to the standard 6500mAh battery included with the unit. With a true 7000mAh capacity and consistent 10A discharge capability, this battery is specifically well suited for maintaining optimal performance in the ATRIS platform.
This battery features a protected button top design and measures approximately 69.3mm in length. While currently optimized for use with the WAVE ATRIS series, it may also be compatible with other devices designed around 26650 battery specifications.
The integrated protection circuit provides safeguards against overcharge, over-discharge, overcurrent, and short circuit, while XTAR’s high-quality cell construction ensures stable voltage output under load. Consistent power delivery is critical for thermal optics, as voltage fluctuations can negatively impact image processing and overall performance.
Please Note: Battery length requirements can vary between thermal optics manufacturers (flat top vs. button top, etc.). Always measure your existing battery length to ensure reliable operation.
Compatible Charger Options
For safe and efficient operation, we recommend pairing these batteries with one the following high quality XTAR charger options:
XTAR VC8S LI-ION / NIMH 8-BAY BATTERY CHARGER
XTAR VC2SL LI-ION / NIMH 2-BAY BATTERY CHARGER
Features
- 7000mAh High-Capacity Lithium-Ion Battery
- 26650 Cell Format
- Protected Button Top Configuration
- Nominal Voltage: 3.6V
- 10A Continuous Discharge Output
- Built-In Protection Circuit (Overcharge / Over-Discharge / Short Circuit)
- Stable Voltage Output Under Load
- Designed for High-Drain Devices
- Approximate Length: ~69.3mm
- Diameter: ~26.5mm
- Lifespan of 500+ Charge Cycles
- Power Upgrade vs. Standard 6500mAh WAVE ATRIS Battery
Items Included
- XTAR 26650 7000mAh Rechargeable Battery x 1
