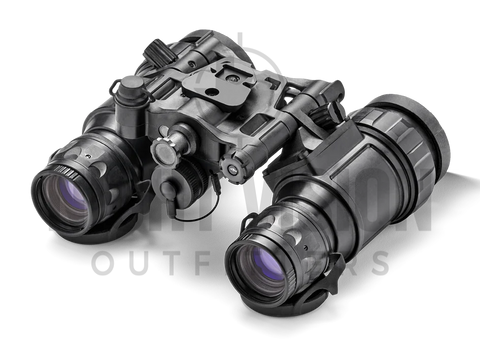

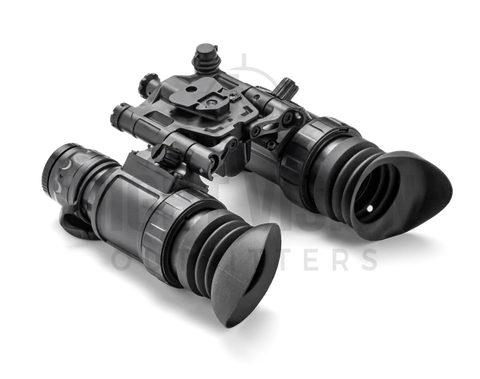

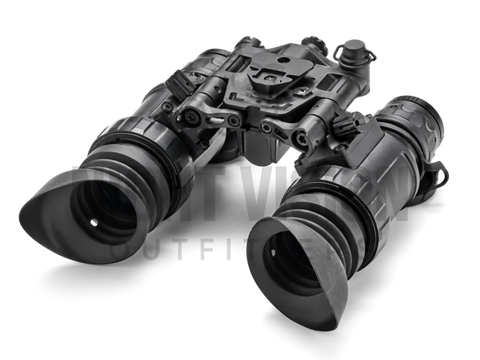

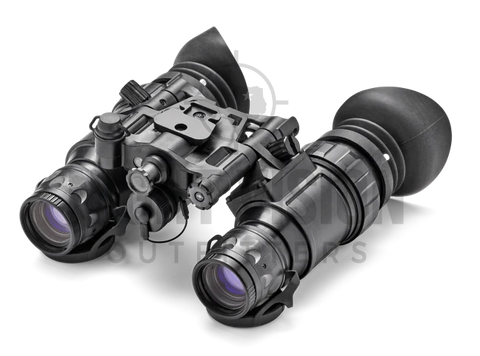

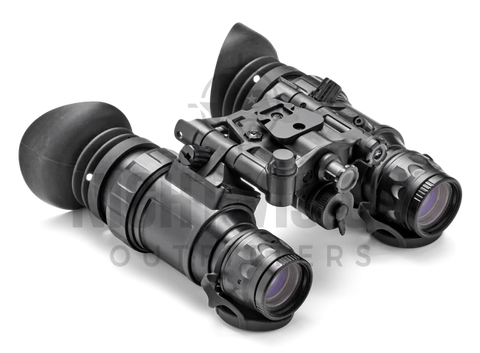

EOTECH BinoNV-W Binocular System

$14,299.00

PLEASE INQUIRE FOR CURRENT LEAD TIME BEFORE PLACING YOUR ORDER

The EOTECH® BinoNV-W is a compact, articulating night vision binocular system designed to deliver a full-featured, military-grade solution in a streamlined and lightweight platform. Built to meet MIL-STD-810G standards, the BinoNV-W provides durability and performance for demanding professional applications.

The system features a dual articulating design, allowing each monocular to be independently rotated out of view while automatically powering off when stowed. This reduces light signature and conserves battery life while enabling flexible single or dual-eye operation.

The BinoNV-W utilizes Gen 3 white phosphor image intensifier tubes with a minimum 2376 FOM, delivering strong low-light performance, high resolution, and excellent clarity in a wide range of lighting conditions. A 47° field of view provides increased situational awareness compared to traditional 40° systems, offering a noticeable improvement in peripheral visibility without the complexity of panoramic systems.

A built-in manual gain control system allows the user to adjust image brightness to match environmental conditions. The system also features an auto-gated power supply, improving performance in dynamic lighting environments and providing protection from sudden exposure to bright light.

Power is supplied by a single onboard AA battery, offering extended runtime while maintaining a simple and widely available power source. An optional external battery pack can be utilized for increased runtime and improved weight distribution.

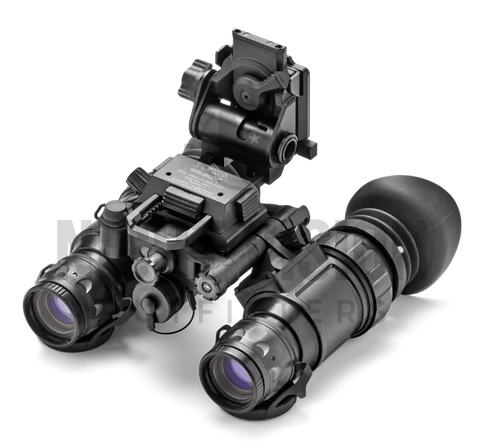

The BinoNV-W includes integrated diopter adjustments and is designed for compatibility with modern helmet mounting systems. Each unit includes a Wilcox G24 dovetail mount, providing a proven and widely used mounting solution.

Image Intensifier Tube Configuration

This system utilizes high-quality Elbit USA Gen 3 white phosphor image intensifier tubes with a minimum 2376 FOM.

All systems feature high-performance image intensifier tubes held to strict cosmetic and performance tolerances to ensure consistent image quality.

Warranty Information

The EOTech BinoNV-W is built to military specifications and designed for professional use. These units are backed by a two-year warranty on the overall system along with a three-year warranty on the housing and its components, so buy with confidence knowing the system is designed for reliable long-term performance during professional use.

System Features

Articulating Night Vision Binocular System
Dual Articulating Pod Design
Individual Pod Auto Shutoff When Articulated
Gen 3 Elbit USA White Phosphor Image Intensifier Tubes
Minimum 2376 FOM
47° Wide Field of View
Improved Peripheral Awareness Over Standard 40° Systems
Manual Gain Control
Auto-Gated Power Supply
Onboard IR Illuminator
IR & Low Battery Indicators
Integrated Diopter Adjustment
Single AA Battery Power
Extended Runtime
Optional External Battery Pack Capability
Dovetail Helmet Mount Interface
Includes Wilcox G24 Mount
Rugged Housing Construction
MIL-STD-810G Ingress / Durability Rated
Waterproof and Dust-proof
Black Housing Configuration
Made in USA
Part Number: EOT-BINO-AI-B-W-S

Performance Specifications

Magnification: 1×
Field of View: 47°
Focus Range: 9.8″ to Infinity
Diopter Adjustment: +2 to -6
Minimum FOM: 2376
Tube Type: Gen 3 White Phosphor
System Weight (With Battery): 17.6 oz
Battery Type: Single AA Battery
Runtime: Lithium: 25+ Hours (Alkaline: 15+ Hours)
Water/Dust Resistance: 66 ft (20m) for 1 hour (MIL-STD-810G)

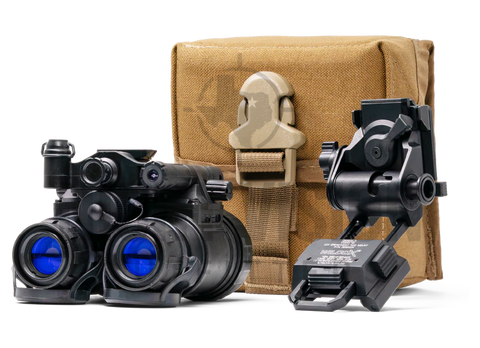

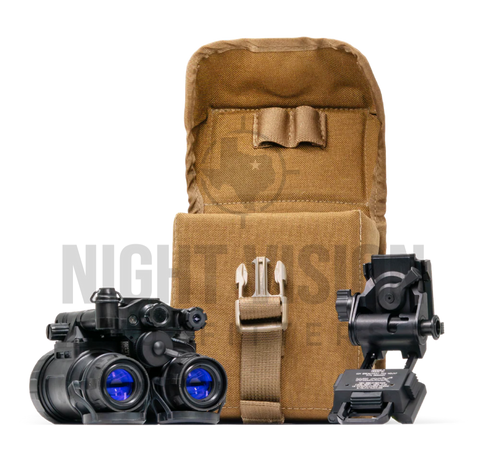

Items Included

EOTech BinoNV-W Night Vision Binocular
Wilcox G24 Dovetail Mount
Image Intensifier Tube Data Sheets
Quick Start Guide
Technical Manual
Rubber Eyecups
Demist Shields
Sacrificial Lenses
Soft Carrying Case
