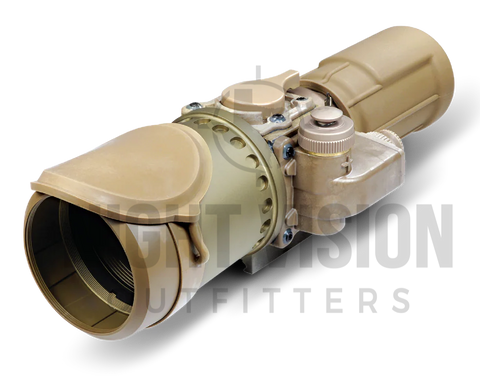

EOTECH MK3 ClipNV-LR Clip-On Device

The EOTECH® MK3 ClipNV-LR is a long-range clip-on night vision weapon sight designed to convert a standard daytime optic into a high-performance night vision system without affecting zero. Mounted forward of the day scope, the MK3 ClipNV-LR allows the user to retain their existing optic, reticle, and ballistic solution while adding night vision capability for long-range, precision shooting applications.

Designed for use with medium- to high-magnification day optics, the MK3 ClipNV-LR provides strong target detection and identification performance at extended distances while maintaining proper eye relief and shooting position. This eliminates the need to re-zero or modify the host optic when transitioning between day and night use.

The system utilizes a L3Harris Gen 3 unfilmed white phosphor image intensifier tube (ITT) with a minimum 2376 FOM, delivering excellent clarity, resolution, and performance in extremely low-light environments. This L3 unfilmed tube technology represents the highest level of night vision performance available, providing superior image brightness and detail in demanding conditions.

Manual gain and focus adjustments allow the user to fine-tune image quality based on environmental conditions and engagement distances.

The ClipNV-LR mounts quickly and securely to standard Picatinny (1913) rails using a single-throw quick-disconnect lever. Its advanced optical design allows night vision capability without requiring removal of the primary day optic, while maintaining minimal point-of-impact shift.

Power is supplied by a single CR123 battery, providing reliable runtime in a compact power solution. The system also incorporates a low battery indicator and reverse polarity protection for added reliability.

Image Intensifier Tube Configuration

This system utilizes a L3Harris Gen 3 unfilmed white phosphor image intensifier tube (ITT) with a minimum 2376 FOM.

All systems feature high-performance L3 tubes held to strict cosmetic and performance tolerances to ensure consistent image quality.

Warranty Information

The EOTECH MK3 ClipNV-LR is built to military specifications and designed for professional use. These units are backed by a two-year warranty on the overall system along with a three-year warranty on the housing and its components, so buy with confidence knowing the system is designed for reliable long-term performance.

System Features

• Clip-On Night Vision Weapon System
• Designed for Precision Rifle-Mounted Use
• Maintains Zero of Host Optic
• Optimized for Medium to High Magnification Day Optics
• 8° Field of View
• 900 Yard Detection Range
• L3Harris Gen 3 Unfilmed White Phosphor ITT
• Minimum 2376 FOM
• Manual Gain Control
• Manual Focus Adjustment
• Minimal Point-of-Impact Shift
• Quick-Disconnect Single-Throw Lever 1913 Picatinny Mount
• Low Battery Indicator
• Reverse Polarity Protection
• Single CR123 Battery Power
• Rugged Housing Construction
• Waterproof and Dust-Proof
• MIL-STD-810G Durability Rated
• Flat Dark Earth (Tan) Housing
• Made in USA
• Two-Year Overall System Warranty & Three-Year Housing Warranty

Performance Specifications

• Magnification: 1× (Clip-On)
• Field of View: ≥8°
• Focus Range: 40 m to Infinity
• Detection Range: ~850 m
• Focal Length: 110 mm
• Minimum FOM: 2376
• Tube Type: L3Harris Gen 3 Unfilmed White Phosphor ITT
• System Weight: 36.1 oz (2.25 lbs)
• Battery Type: CR123 Lithium
• Runtime: ≥16 Hours

Items Included

• EOTECH MK3 ClipNV-LR Night Vision Clip-On Device
• Protective Case
• Operator Manual
• Lens Cleaning Kit
