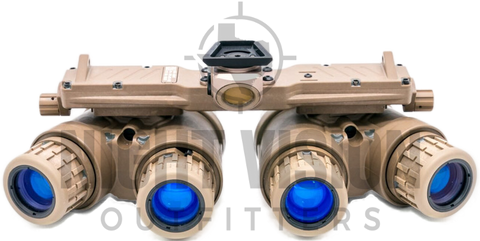

L3Harris GPNVG Panoramic Goggle
PLEASE INQUIRE FOR STOCK STATUS BEFORE PLACING YOUR ORDER
The L3Harris GPNVG (Ground Panoramic Night Vision Goggle) is a premium panoramic night vision system designed to provide unmatched situational awareness through a true quad-tube configuration. Unlike traditional dual-tube binocular systems, the GPNVG utilizes four image intensifier tubes to deliver a significantly expanded field of view, allowing users to maintain awareness across a much wider visual area without head movement.
This system provides a panoramic field of view of approximately 97°, more than doubling the horizontal field of view of standard 40° night vision binoculars. The result is a substantial increase in peripheral awareness, making it one of the most capable night vision systems available for dynamic environments, particularly in close-quarters applications where rapid threat identification and spatial awareness are critical.
The GPNVG is built as a complete L3Harris system utilizing high-performance Gen 3 unfilmed white phosphor image intensifier tubes with a minimum 2376 FOM. These tubes deliver exceptional low-light performance, high resolution, and excellent clarity in extremely dark conditions. All systems feature extremely high-performance tubes held to strict cosmetic and performance tolerances, ensuring a clean, consistent image across all four optical channels.
The housing is designed for durability and operational reliability, with an integrated panoramic bridge system that maintains proper alignment across all four optical channels. The system utilizes a fixed panoramic configuration, optimized for maximum field of view and situational awareness rather than traditional articulating operation.
Power is supplied via a remote battery pack system, providing extended runtime and improved weight distribution when helmet-mounted. This configuration reduces front-end weight and enhances overall balance during extended use.
Our systems are configured with a dovetail mounting interface for compatibility with modern helmet mounting solutions.
The L3Harris GPNVG is widely regarded as the benchmark panoramic night vision system and is the preferred platform among top-tier special operations units worldwide including US DEVGRU (SEAL Team 6), Delta Force, British SAS and other allied operators. Its adoption in advanced military programs underscores its capability in high-risk, close-quarters environments where maximum situational awareness is critical.
Warranty Information
The L3Harris GPNVG is built to extremely rugged specifications and designed to withstand harsh professional and military use. These units are backed by a one-year factory warranty, so buy with confidence knowing this system is designed to provide reliable, long-term performance.
System Features
- Quad-Tube ITT Panoramic Night Vision System
- Approximately 97° Panoramic Field of View
- L3Harris Gen 3 Unfilmed White Phosphor Tubes
- Minimum 2376 FOM
- Fixed Panoramic Optical System
- Optimized for Maximum Situational Awareness
- Integrated Panoramic Bridge Design
- Precision Optical Alignment Across All Optical Channels
- Remote Battery Pack System provides Long Runtime and Improved Weight Distribution
- Auto-Gated Power Supply
- Onboard IR Illuminator
- IR & Low Battery Indicators
- Dovetail Helmet Mounting Interface
- Rugged Housing Construction Designed for Professional Use
- Waterproof and Dustproof
- Flat Dark Earth Housing Color
- 1-Year Factory Warranty
- Made in USA
Performance Specifications
- Magnification: 1×
- Field of View: ~97° Panoramic
- Focus Range: 9.8″ to Infinity
- Eye Relief: 25 mm
- Minimum FOM: 2376
- Tube Type: L3Harris Gen 3 Unfilmed White Phosphor (High FOM)
- System Weight: 27 Oz
- Battery Type: Remote Battery Pack
Items Included
- L3Harris GPNVG Night Vision System (High FOM)
- Remote Battery Pack
- Battery Pack Cable
- Hard Carrying Case
- Image Intensifier Tube Data Sheets
