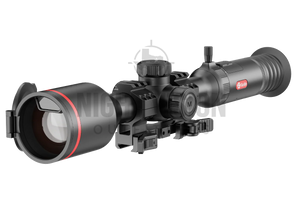

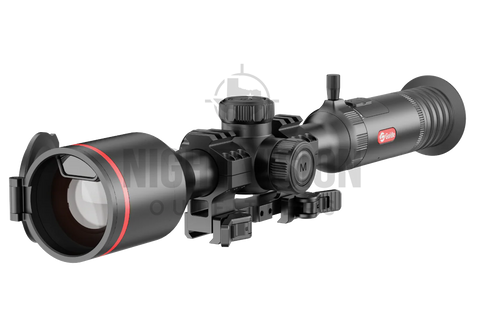

GUIDE TU650 LRF PRO 50mm 640x512

PLEASE INQUIRE FOR STOCK STATUS BEFORE PLACING YOUR ORDER

The GUIDE TU650 Pro 3.0 is a high-performance thermal weapon sight designed to deliver exceptional image clarity, long-range detection capability, and advanced onboard processing in a rugged, streamlined package. Built around a 640×512 thermal sensor and paired with a 50mm germanium objective lens, the TU650 Pro 3.0 is engineered for serious night hunters.

At the core of the system is a 12μm thermal sensor with high sensitivity (≤18 mK NETD), allowing the unit to produce detailed imagery with strong contrast, even in low  contrast conditions. Combined with GUIDE’s “Hyper-Light” image processing algorithm, the system delivers improved clarity, reduced noise, and enhanced image detail across all magnification levels.

The TU650 Pro 3.0 utilizes a shutterless (3.0) design, eliminating the need for traditional calibration. This removes the audible click and momentary image freeze found in shutter-based systems, providing a completely uninterrupted viewing experience.

With a 50mm F/1.0 germanium lens and base magnification of 3.7x, optimized for mid-to-long-range use, the TU650 Pro 3.0 provides strong detection capability while maintaining a usable field of view for quick follow up shots on groups. Digital zoom further extends the system’s effective range while preserving image quality through onboard processing enhancements.

An integrated laser rangefinder provides fast, accurate distance measurement out to approximately 1,600 yards, providing accurate data to the ballistic calculator for confident shot placement at extended ranges.

The unit is powered by a dual-rechargeable battery system consisting of an internal battery plus a removable 18650, offering extended operating times of up to fourteen hours along with the ability to "hot-swap" batteries without shutting the unit down. Onboard video recording and WiFi connectivity allow users to capture and stream footage via the Guide TargetIR mobile app.

The TU PRO (3.0 Series) represents a significant upgrade over the standard TU/M series, incorporating improved sensor sensitivity, advanced image processing, shutterless operation, and enhanced durability with IP68 protection.

Key Differences: TU PRO 3.0 vs. Standard TU/M Series

• “Hyper-Light” Image Processing for Improved Clarity and Noise Reduction
• Shutterless Operation (No Image Freeze or Audible Calibration Click)
• Enhanced 1,630-Yard Laser Rangefinder
• Faster Processing and Improved System Responsiveness
• Expanded Internal Memory (256GB)
• Updated Controls and Improved Ergonomics

Warranty Information

GUIDE USA thermal optics are backed by a comprehensive factory warranty, including a 10-year warranty on the thermal sensor and detector, a 5-year warranty on the overall system, and a 2-year warranty on any accessories.  Additionally, GUIDE USA provides a Texas-Based repair facility, and guarantees repair or replacement within a week once received. So buy the TU650 Pro 3.0 with confidence knowing you’ll be able to enjoy this unit for years to come.

Features

• 640×512 Thermal Sensor Resolution
• 12μm Pixel Pitch
• 50Hz Frame Rate
• ≤18 mK NETD Thermal Sensitivity
• 50mm F/0.9 Germanium Objective Lens
• 3.7× Base Magnification
• 8.8° Field of View
• 8× Digital Zoom (29.6x)
• High-Resolution 1.03'' AMOLED 2560×2560 Display
• 2,800 Yard Detection Range
• “Hyper-Light” Advanced Image Processing
• Shutterless 3.0 System (No Calibration Interruptions)
• Integrated 1,630-Yard Laser Rangefinder
• Onboard Video and Image Recording with Sound (256GB)
• WiFi Connectivity with Guide TargetIR Mobile App Integration
• 14 Hour Dual Battery System (Internal Serviceable 18650 + Removable 18650)
• USB-C External Input
• IP68 Waterproof and Dustproof Rating
• Suitable for Large Caliber Weapons up to .300 WM
• 30mm All-Metal Housing
• 10-Year Thermal Sensor & Detector Warranty
• 5-Year Overall System Warranty
• 2-Year Accessory Warranty

Items Included

• GUIDE TU650 Pro 3.0 Thermal Scope
• 30mm Quick Detach Scope Mount
• 18650 Battery x 2
• Battery Charger
• Rubber Eyecup
• Power Adapters
• Carrying Case
• Operator Manual
