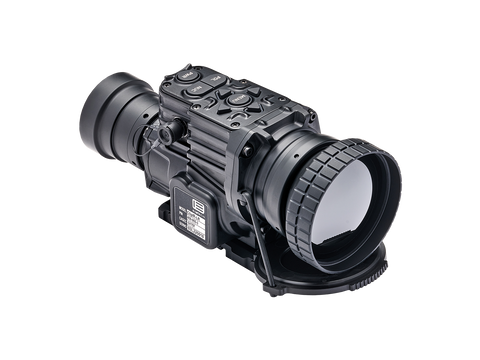

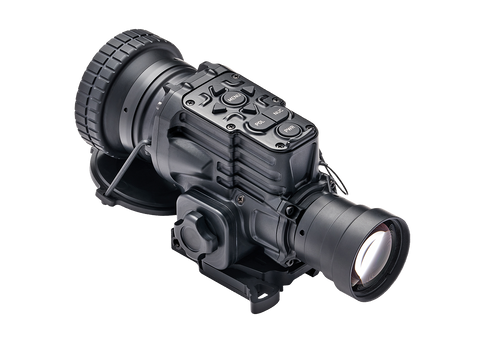

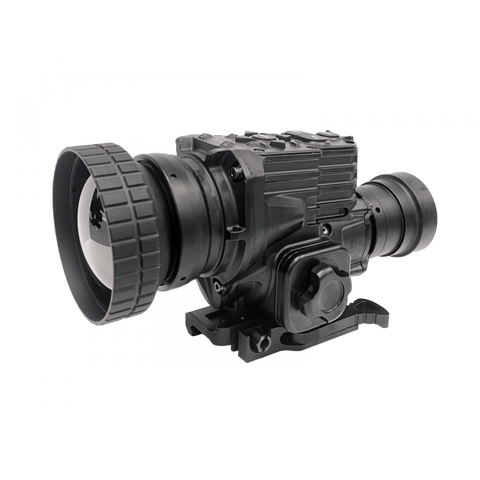

EOTECH ClipIR-LR 75mm 640 Thermal Clip-On

  • $12,869.99


The EOTECH® ClipIR-LR long range thermal clip-on unit features exceptional performance in a compact package.  State-of-the-art image enhancement algorithms, combined with a high quality 75mm germanium lens, 640 x 480 resolution, 60hz thermal core gives the user the ability to add extremely high-performance thermal imaging to their existing optics while maintaining their existing ballistic zero.

The ClipIR-LR simply attaches with a built-in quick detach mount to a MIL-STD (1913) Picatinny rail in front of a daytime optic to add thermal functionality.   It is a true collimated optic, meaning no adjustment of zero is required.  The reticle of the daytime scope is used and all holdovers, etc. are accurately maintained.

The ClipIR-LR is optimized for use with 6-10x quality daytime optics for long range shooting.  It is recommended for all clip-on devices (thermal or NV) to use high quality daytime scopes, and weapons with monolithic rail systems (meaning the forearm and receiver are one piece).  Users have reported accurate shooting ability with this optic to as far as 800 yards while hunting.

This unit is powered by four standard AA batteries, and supports rechargeable, alkaline, or lithium.  When used with quality lithium batteries, the ClipIR-LR can operate for up to 10 hours of continuous use.

This is a true MIL-SPEC thermal clip-on and is compatible with weapon systems of up to full-auto .50 BMG. It is built very tough in an all-metal housing, and complies with MIL-STD-810G, MIL-STD461E, and IP67 water ingress ratings as well.

EOTECH® thermal and night vision products are backed by an industry leading ten-year factory warranty, so buy with the confidence that you, or your department or agency will have reliable use of this optic for many years to come.


  • 640 × 480 Resolution
  • 17 μm Pixel Pitch
  • 60 Hz Frame Refresh Rate (30 Hz power save mode)
  • True Collimated Thermal Display (No Zeroing)
  • 75mm High Quality Germanium Objective Lens
  • 8.3 Degree Field of View
  • 1x Base Optical Magnification
  • 2x and 4x Digital Zoom
  • Adjustable Objective Focus (20m to Infinity)
  • MIL-STD-810G, MIL-STD461E, IP67 Waterproof
  • 4 x AA Battery Power (Lithium, Alkaline, or Rechargeable)
  • Up to 10 hours operating time
  • T-6061 Aircraft Aluminum Housing
  • Full Auto .50 BMG Recoil Ratings
  • Built-in Quick Detach Mount (MIL-STD (1913) Pictinny Rails Compatibility)
  • Optimized for 6-10X Quality Daytime Optics
  • 10 Year Factory Warranty

Items Included

  • EOTECH® ClipIR-LR Long Range Thermal Clip-On Optic
  • Quick Start Guide
  • Technical Manual
  • Neoprene Hood
  • Lens Cleaning Kit
  • Protective Carry Case
