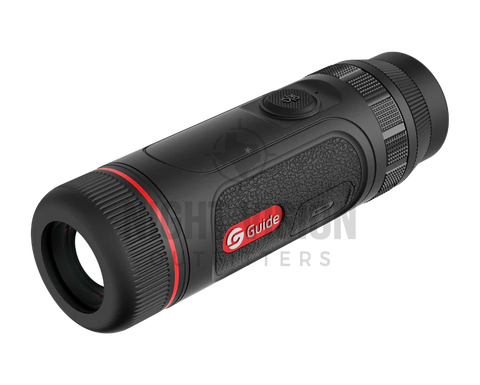

GUIDE TE421 400x300 25mm Monocular
PLEASE INQUIRE FOR STOCK STATUS BEFORE PLACING YOUR ORDER
The GUIDE USA TE421 is a compact thermal monocular designed to deliver strong performance, lightweight portability, and simplified operation in a rugged ergonomic housing at an affordable price. Built around a 400×300 thermal sensor and paired with a 25mm germanium objective lens, the TE421 is ideal for users needing a compact monocular with great performance for the price.
At the core of the system is a 12μm thermal sensor with ≤25 mK NETD sensitivity, allowing the unit to produce detailed imagery. Combined with GUIDE’s advanced image processing algorithms, the system delivers great image quality and dependable thermal performance.
With a 25mm F/1.0 germanium objective lens and a base magnification of 1.9x, the TE421 provides a wide field of view for scanning larger areas while maintaining strong detection, contrast and identification capabilities. This compact optical system is paired with a high-quality 800x600 AMOLED display to provide comfortable viewing during extended use.
Unlike the TD-series monoculars, the TE-series utilizes compact cylindrical housing with simple controls designed for fast and intuitive operation. The lightweight ergonomic design makes the unit easy to carry and comfortable to use during long periods of use.
The unit is powered by an internal rechargeable battery system, providing operating times of up to six hours. Onboard video recording with audio and WiFi connectivity allow users to capture and stream footage through the Guide TargetIR mobile app. The TE421 features IP67 rated environmental protection for reliable operation under harsh conditions.
A major advantage of the TE421 is its dedicated magnetic attachment mounting system, allowing the unit to quickly interface with optional helmet mounting accessories for hands-free thermal observation applications. This provides additional flexibility for users wanting an ultra-compact thermal monocular capable of both handheld and helmet-mounted use.
Warranty Information
GUIDE USA thermal optics are backed by a comprehensive factory warranty, including a 10-year warranty on the thermal sensor and detector, a 5-year warranty on the overall system, and a 2-year warranty on any accessories. Additionally, GUIDE USA provides a Texas-Based repair facility, and guarantees repair or replacement within a week once received. So buy the TE421 with confidence knowing you’ll be able to enjoy this unit for many years to come.
Features
- 400×300 Thermal Sensor Resolution
- 12μm Pixel Pitch
- 50Hz Frame Rate
- ≤25 mK NETD Thermal Sensitivity
- 25mm F/1.0 Germanium Objective Lens
- 1.9× Base Magnification
- 6× Digital Zoom (7.6x)
- 11.0° Field of View
- 1,400 Yard Detection Range
- 0.32’’ 800×600 AMOLED Display
- Advanced Image Processing Algorithms
- Multiple Color Pallets & Image Adjustments
- Compact, Lightweight, Ergonomic Housing
- Simplified, One-Button Control Layout
- Adjustable Objective and Diopter Focus
- Magnetic Helmet Mount Interface System
- Onboard Video and Image Recording with Audio (16GB)
- WiFi Connectivity with Guide TargetIR Mobile App Integration
- Onboard Rechargeable Battery System (6 Hours)
- USB-C External Power Input
- IP67 Water and Dust Ingress Rating
- 10-Year Thermal Sensor & Detector Warranty
- 5-Year Overall System Warranty
- 2-Year Accessory Warranty
Items Included
- GUIDE USA TE421 Thermal Monocular
- Battery Charging Adapter
- USB-C Cable
- Wrist Strap
- Carrying Case
- Quick Start Guide
