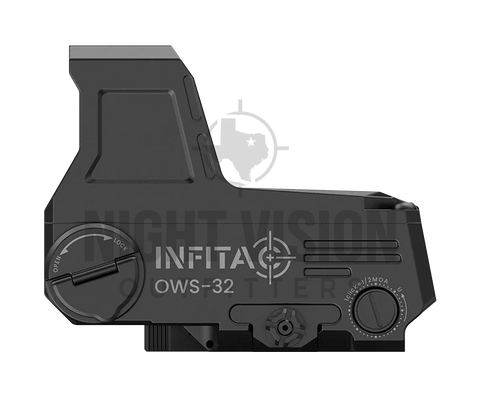

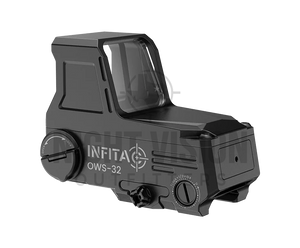

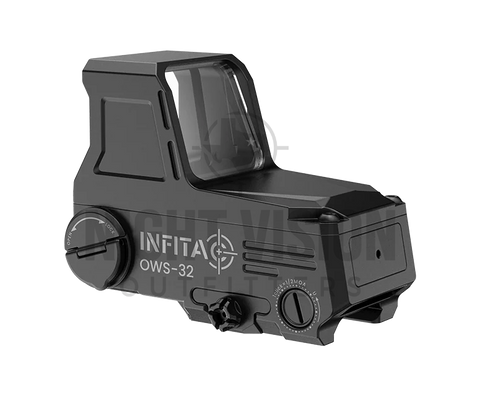

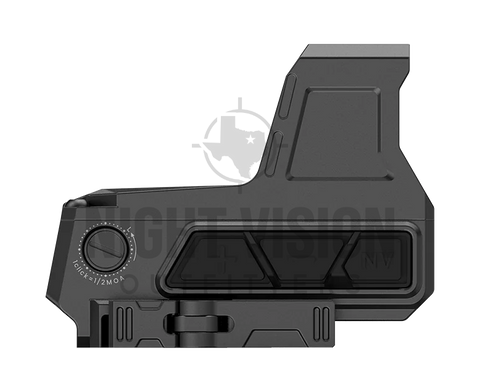

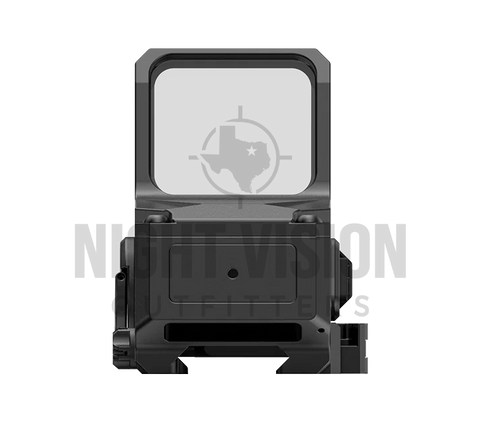

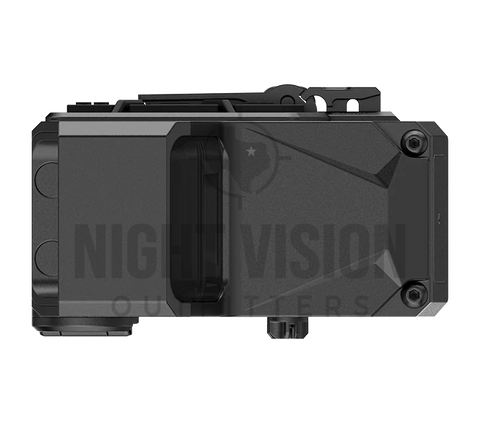

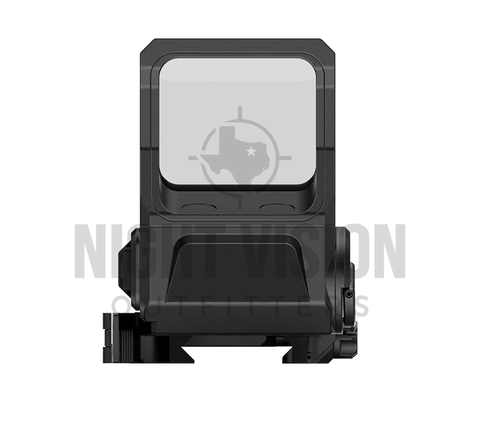

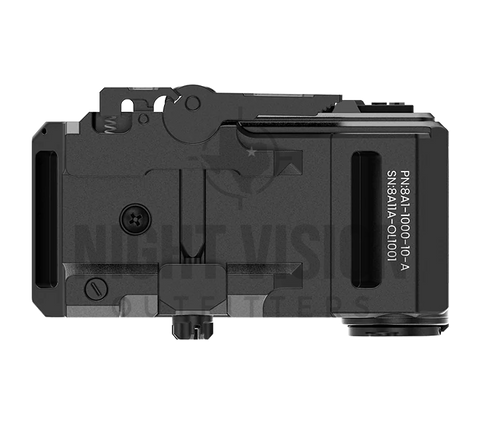

INFITAC OWS-32 Optical Waveguide Sight

MOST OF OUR PRODUCTS ARE IN STOCK & READY TO SHIP WITHOUT DELAY

IF ANY LEAD TIME IS REQUIRED, WE WILL GET IN TOUCH WITH YOU BEFORE PROCEEDING WITH YOUR ORDER

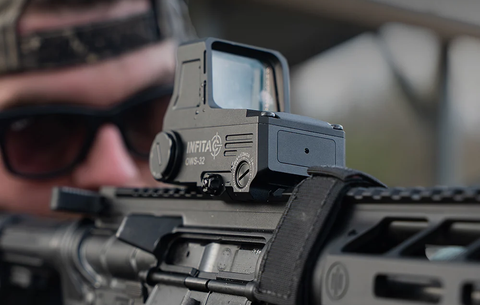

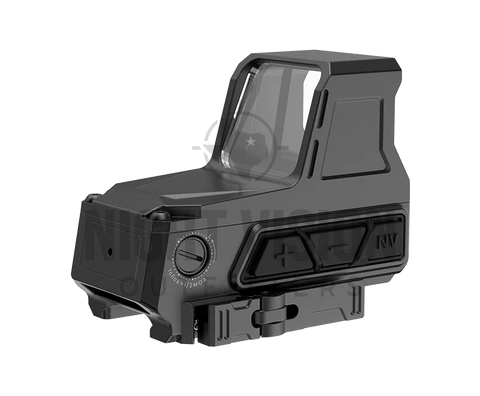

The INFITAC OWS-32 Optical Waveguide Sight introduces a fundamentally different approach to electronic weapon sights. It isn’t a conventional red dot and it isn’t a holographic sight. Instead, the OWS-32 uses advanced optical waveguide technology to deliver the aiming reticle through a flat, highly transparent viewing window for a wide-open sight picture, crisp reticle, and minimal visual obstruction.

The OWS-32 features a large 1.26 × 1.0-inch viewing window with unlimited eye relief and a parallax-free design. Seven selectable reticle configurations combine a 2.5 MOA dot, 65 MOA circle, and crosshair, while 20 daylight and 10 night vision brightness settings provide extensive adjustment for changing conditions. Automatic brightness control and INFITAC’s InstaWake motion activation further simplify operation.

Built from AL7075-T6 aluminum, the OWS-32 weighs just 9.9 ounces, is IP67 rated, and is tested to withstand up to 1200G of recoil. A single CR123A battery provides up to 1,500 hours of operation, while the included quick-detach lower 1/3 co-witness mount provides compatibility with MIL-STD-1913 Picatinny and STANAG 2324 rails.

What Makes an Optical Waveguide Sight Different?

A traditional red dot reflects an LED off a coated lens to create its aiming point, while a holographic sight uses a laser and holographic grating to reconstruct the reticle. The OWS-32 takes a different approach, directing the aiming image through a flat optical waveguide using controlled internal reflections before delivering it to the shooter’s eye.

The result is a bright, natural sight picture with excellent color fidelity, minimal lens tint, and virtually no forward light signature. The waveguide design also produces a clean, well-defined reticle that can be especially beneficial for shooters who experience blooming, smearing, or starburst effects with traditional red dots due to astigmatism.

Warranty

The INFITAC OWS-32 is backed by a five-year factory warranty with an additional six months of coverage available upon registration, so buy with confidence knowing you’ll be able to enjoy this optic for years of reliable service.

Features

• Advanced Optical Waveguide System
• High Color Fidelity & Natural Sight Picture
• Minimal Lens Tint & Visual Obstruction
• Astigmatism-Friendly Reticle Presentation
• Virtually Zero Forward Light Emission
• Parallax-Free Design w/ Unlimited Eye Relief
• 1.26 × 1.0-Inch (32 × 26mm) Viewing Window
• 7 Selectable Reticle Configurations
• 2.5 MOA Dot / 65 MOA Circle / Crosshair
• 20 Daylight Brightness Settings
• 10 Night Vision Brightness Settings
• Automatic Brightness Control
• InstaWake Motion Activation
• Lower 1/3 Co-Witness
• Quick-Detach MIL-STD-1913 Picatinny Mount
• 0.5 MOA Adjustment Per Click
• ±50 MOA Windage & Elevation Adjustment
• Single CR123A Battery Power
• Up to 1,500 Hours Battery Life
• Side-Loading Battery Compartment
• AL7075-T6 Aluminum Housing
• 1200G Recoil Rated
• IP67 Waterproof Rated
• Dimensions: 3.3 × 2.0 × 2.6 Inches
• Weight: 9.9 oz
• 5-Year Factory Warranty + 6 Months Upon Registration

Included

• INFITAC OWS-32 Optical Waveguide Sight
• Quick-Detach Lower 1/3 Co-Witness Mount
• Rechargeable CR123A 3.7V Batteries (x2)
• Battery Charger
• Lens Cleaning Cloth
• Zeroing Tool
• INFITAC Sticker
• User Manual
• Warranty Card
