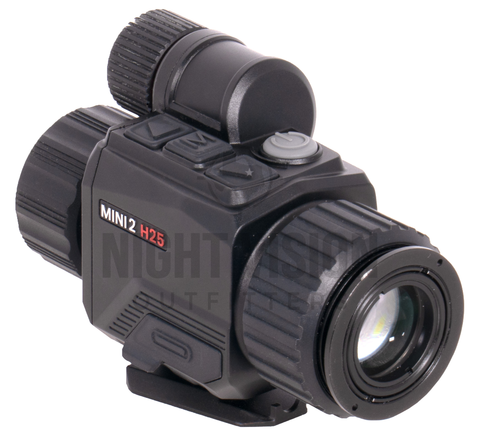

NOCPIX MINI2 H25 25mm 640 Fusion Monocular

MOST OF OUR PRODUCTS ARE IN STOCK & READY TO SHIP WITHOUT DELAY

IF ANY LEAD TIME IS REQUIRED, WE WILL GET IN TOUCH WITH YOU BEFORE PROCEEDING WITH YOUR ORDER

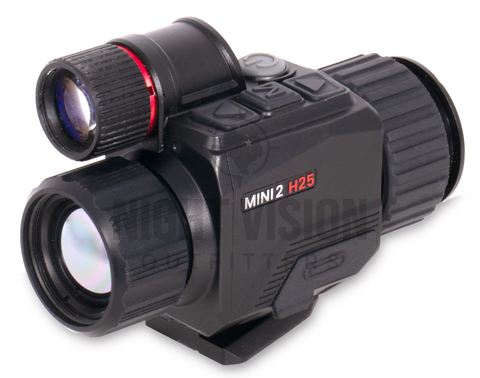

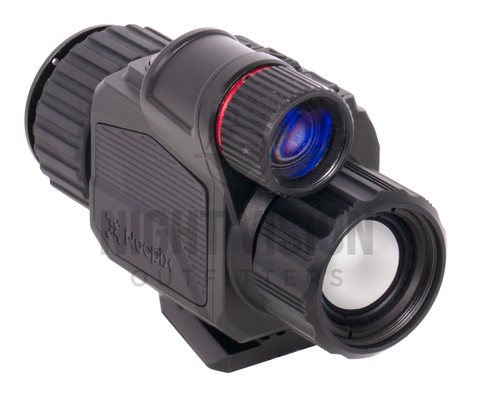

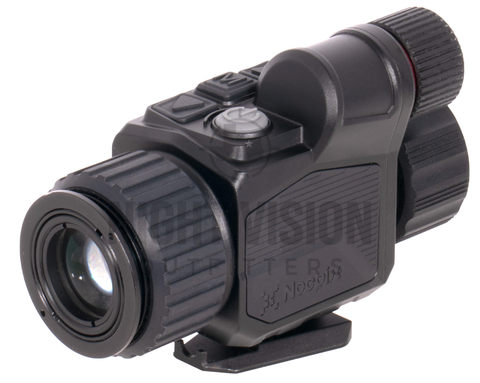

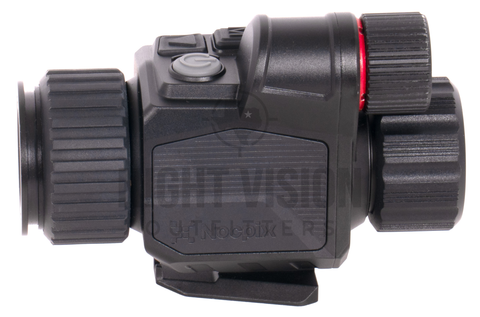

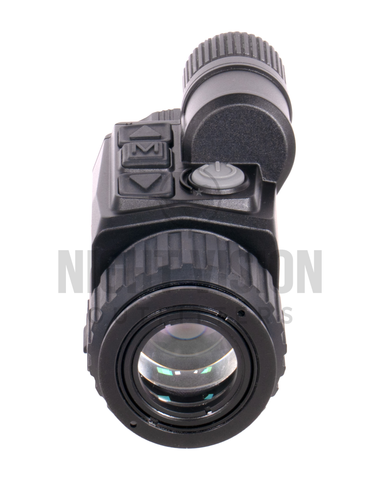

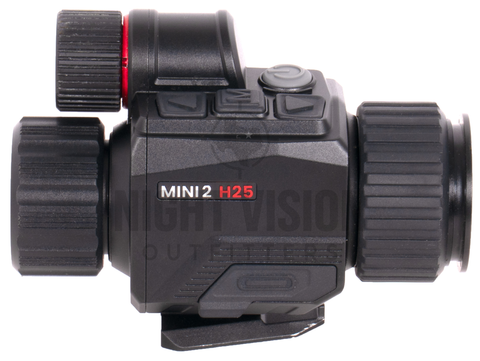

The NOCPIX MINI2 H25 is a compact, helmet-mounted multispectral monocular that combines high-performance thermal imaging, digital night vision, and thermal fusion technology into a single lightweight platform. Designed around true 1× operation, the MINI2 provides the versatility to transition seamlessly from driving and navigating to scanning and stalking without changing devices.

At the heart of the MINI2 is a 640 × 512, 12µm thermal sensor with an impressive ≤15mK NETD sensitivity and 60 Hz refresh rate, paired with a 25mm F/1.0 objective lens. The thermal channel provides true 1× native magnification with up to 4× digital zoom and detection ranges out to 1,420 yards. NOCPIX Reality+ image processing further enhances thermal image quality, target separation, and fine detail.

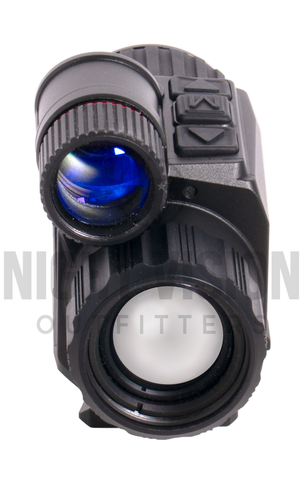

Unlike a conventional thermal monocular, the MINI2 incorporates a dedicated digital night vision channel alongside its thermal system. A 1/1.8” CMOS digital sensor with a 14.3mm F/0.85 objective lens provides true 1× digital night vision, while the thermal and digital channels are aligned for use together in the MINI2’s Fusion Mode.

Fusion Mode overlays thermal information onto the digital night vision image, combining the detection capabilities of thermal with the significantly greater environmental detail available through digital night vision. Terrain, roads, vegetation, structures, vehicles, and other surroundings become easier to interpret while heat signatures remain clearly visible. The digital night vision channel also provides the ability to see through glass, something thermal imaging cannot do, making it especially valuable when driving or navigating through a windshield.

The MINI2 is purpose-built for helmet-mounted operation and features an integrated dovetail interface compatible with industry-standard night vision mounts. At only 8.47 oz, its compact design minimizes weight at the front of the helmet while maintaining full thermal, digital night vision, and fusion capability.

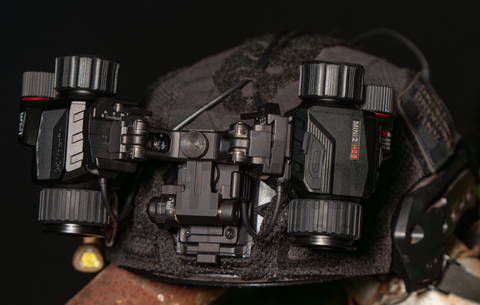

NOCPIX Dual-Link Technology allows two MINI2 units to be paired together to create a unified binocular system. Once paired, one MINI2 functions as the master controller, allowing menus, color palettes, image settings, digital zoom, core functions, and other adjustments for both units to be controlled through a single interface. This provides the benefits of a dual-eye multispectral helmet-mounted system while maintaining the flexibility to separate the MINI2 units for independent monocular use.

Power management is also designed specifically around helmet-mounted operation. The MINI2 is intended primarily to operate from its external battery pack, providing up to 7 hours of operating time while also serving as a rear-mounted counterweight to help balance the helmet. An integrated internal battery provides approximately one hour of standalone operation and serves primarily as a reserve power source. External power is supplied through USB-C, allowing the MINI2 to also operate from compatible USB-C external battery packs when additional runtime or power flexibility is needed.

A high-resolution 1280 × 1024 AMOLED display provides a detailed image for thermal, digital night vision, and Fusion viewing. Onboard photo and video recording, wireless connectivity with NOCPIX App compatibility, an aluminum housing, and IP67 water and dust ingress protection round out a compact multispectral system designed specifically around helmet-mounted operation.

Warranty Information

The MINI2 is backed by the NOCPIX “5 x 5” warranty which provides five years of transferable warranty coverage along with a five-day turnaround guarantee if service is ever required. NOCPIX products are distributed and supported by iRayUSA in Lewisville, TX, so buy with confidence that you’ll be able to enjoy trouble-free use for years to come.

Features

• 640 × 512 Thermal Sensor
• 12µm Pixel Pitch
• ≤15mK NETD Thermal Sensitivity
• 60 Hz Refresh Rate
• NOCPIX Reality+ Image Processing
• 25mm F/1.0 Thermal Objective Lens
• True 1× Thermal Magnification
• Up to 4× Digital Zoom
• 17.6° × 14.1° Thermal Field of View
• Detection Range up to 1,420 Yards
• 1/1.8” CMOS Digital Night Vision Sensor
• 960 × 540 Digital Night Vision Resolution
• 14.3mm F/0.85 Digital Night Vision Objective
• True 1× Digital Night Vision
• 30.8° × 17.3° Digital Night Vision Field of View
• Thermal + Digital Night Vision Fusion Mode
• Aligned Thermal and Digital Channels
• Digital Night Vision Capability for Viewing Through Glass
• NOCPIX Dual-Link Technology to Seamlessly Pair Dual MINI2s
• Integrated Dovetail for Industry-Standard Mount Compatibility
• 1280 × 1024 Resolution 0.6” AMOLED Display
• Multiple Color Palettes
• Onboard Video and Image Recording
• 32GB Built-In Memory
• Wi-Fi Connectivity and NOCPIX App Compatibility
• External NBP-7 Battery Pack with up to 7 Hours Runtime
• External Battery Pack Functions as Helmet Counterweight w/ Velcro Attachment
• Internal Reserve Battery with Approximately 1 Hour Standalone Runtime
• USB-C External Power Compatible
• Aluminum Housing
• IP67 Water / Dust Ingress Rating
• Only Weighs 8.47 Ounces
• 5 Year Transferable Factory Warranty

Items Included

• NOCPIX MINI2 H25 Multispectral Monocular
• External NBP-7 Battery Pack
• Lens Cover
• USB-C Cable
• Magnetic NBP-7 Cable
• Soft Carry Case
• User Manual
