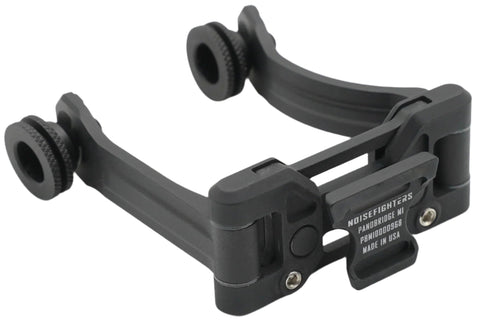

Noisefighters Panobridge M1 Bridge System
PLEASE INQUIRE FOR CURRENT STOCK STATUS OR LEAD TIME PRIOR TO ORDERING

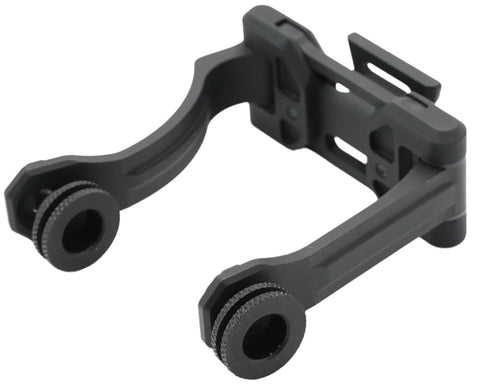

The Noisefighters Panobridge™ M1 is an advanced, lightweight, all-metal night vision bridge system designed to allow users to run dual night vision monoculars with adjustable field-of-view and articulation. Additionally, it can be used to bridge other types of night vision and thermal monoculars when using appropriate Noisefighters adapters (an adapter is included for the Nocturn Industries UANVM “Tanto”).
The M1 is constructed from high-quality 7075-T6 Aluminum Alloy components and is engineered to withstand hard use while remaining exceptionally lightweight. The Noisefighters Panobridge™ M1 weighs only 1.9 oz total in its standard configuration with two PVS-14 arms installed, and only 2.3 oz total with one PVS-14 and one thermal monocular arm installed, making it the lightest metal bridge mount ever offered for professional use. This is approximately 65% less weight than the KVC® Universal Night Vision Bridge with OSS shoe sets installed, approximately 25% less than the IC® Dual PVS-14 Light Weight Mounting System, and is the same weight as a single polymer Mil-Spec AN/PVS-14 J-Arm. Thumbscrews make installation and removal on night vision devices quick and simple.

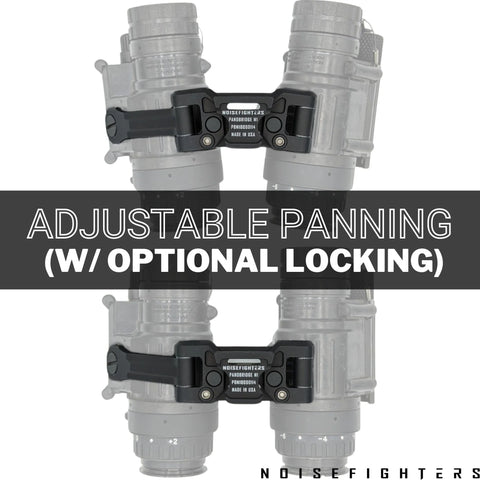

Building on Noisefighters’ original Adjustable Field of View (AFOV) bridge design, the all-metal Panobridge™ M1 features on-the-fly pan angle adjustment with the ability to mechanically lock each arm for maximum rigidity and durability. Pan angle is adjusted by rotating each arm through the friction-based mechanism, and can be securely locked in place using a 3/32” hex wrench or the included NVAT tool.

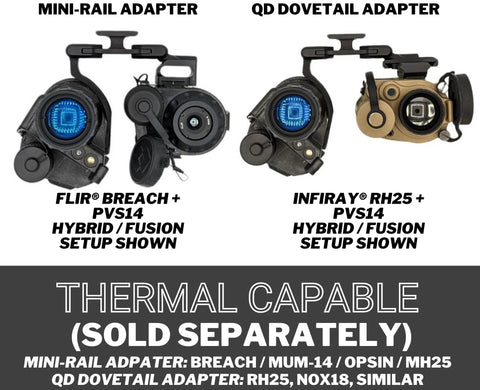

Separate mounting adapters are available for thermal monoculars that utilize the Mini-Rail / MUM interface, including the FLIR® Breach, Infiray® MH-25 / RH-25 (with mini-rail installed), Sionyx® OPSIN, and MUM-14. For devices equipped with a male dovetail mount, such as the Infiray® RH-25, AGM StingIR, Rix Stride, or N-Vision® NOX18, a quick-detach (QD) adapter is also available for fast installation and removal. Both adapter options mount to either side of the Panobridge™ M1 and include an adjustable slider for proper interpupillary distance.

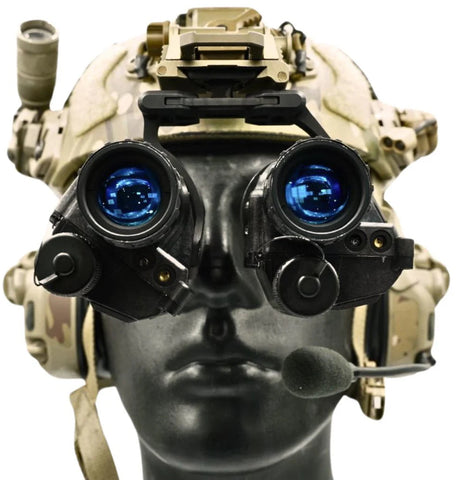

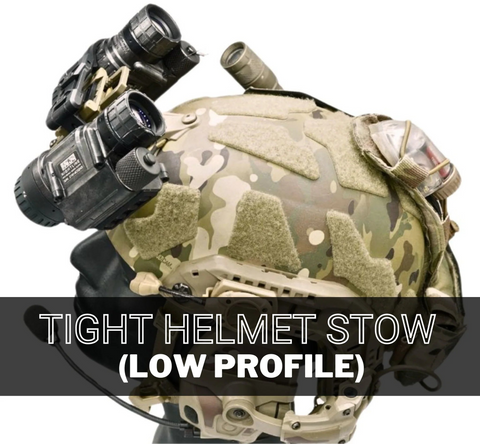

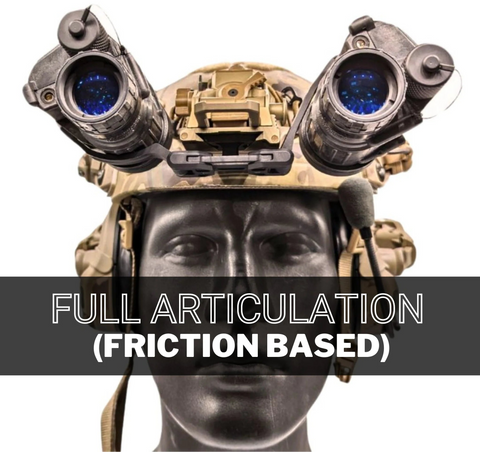

The Panobridge™ M1 allows each monocular to articulate independently, enabling users to stow one or both devices out of the field of view when not in use. Adjustable spacing allows proper alignment for individual interpupillary distance and field-of-view preferences. The bridge is compatible with standard dovetail helmet mounts, such as the Wilcox G24 series.
All Noisefighters accessories are backed by a transferable lifetime factory warranty, so buy with confidence knowing the Panobridge™ M1 is built to provide years of dependable service. Noisefighters products are proudly designed, manufactured, and assembled in the USA by US Marine Corps combat veterans.
Features
- Lightweight 7075-T6 Hardcoat Anodized Aluminum Construction
- Assembled Weight of 1.9 oz
- Low-Profile, Compact Design
- Independent Articulation for Each Monocular
- Adjustable Interpupillary Distance & Field of View
- Designed to Bridge Two AN/PVS-14 Night Vision Monoculars
- Compatible with Nocturn Industries UANVM “Tanto” (Adapters Included)
- Compatible with Various Thermal Monoculars (Requires Noisefighters Adapter)
- Low-Profile, Compact Design
- Compatible with Standard Dovetail Helmet Mount Interfaces
- Transferable Lifetime Warranty
- Made in the USA

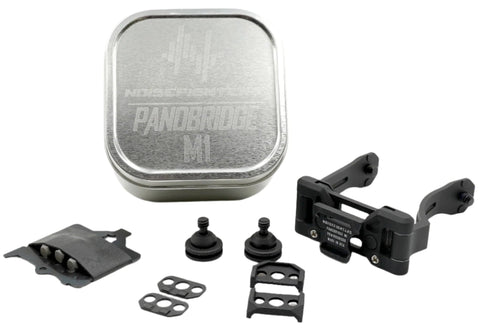

Items Included
- Noisefighters Panobridge™ M1 Night Vision Bridge System
- Noisefighters Nocturn Industries UANVM “Tanto” Adapters (2)
- Noisefighters Night Vision Accessory Tool (NVAT)
