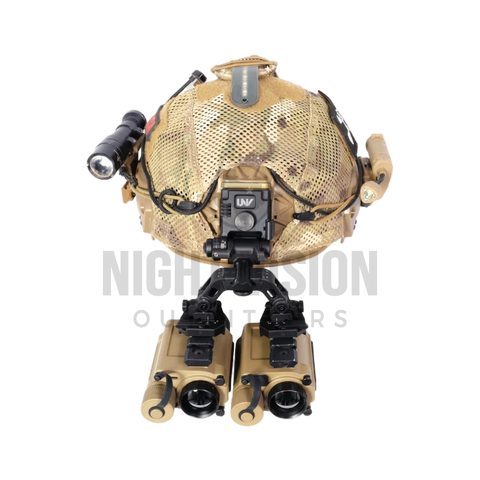

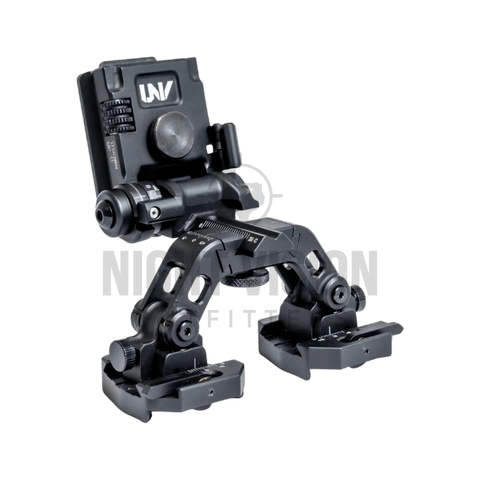

The UNV Ultimate Helmet Mount is a complete, modular helmet mounting system that combines the functions of a traditional helmet mount and dual-optic bridge into one highly adjustable platform. Instead of purchasing a helmet mount, bridge, and J-arms separately, the Ultimate Helmet Mount provides a turnkey solution for running night vision binoculars, single monoculars, dual monoculars, thermal monoculars, or mixed thermal/night vision configurations.

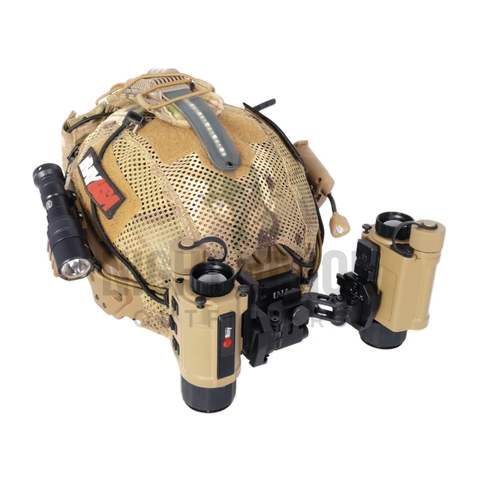

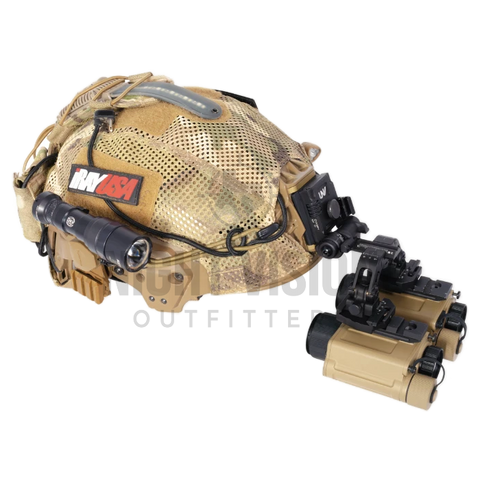

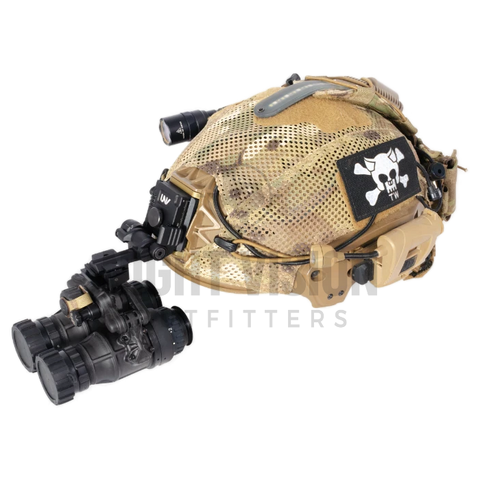

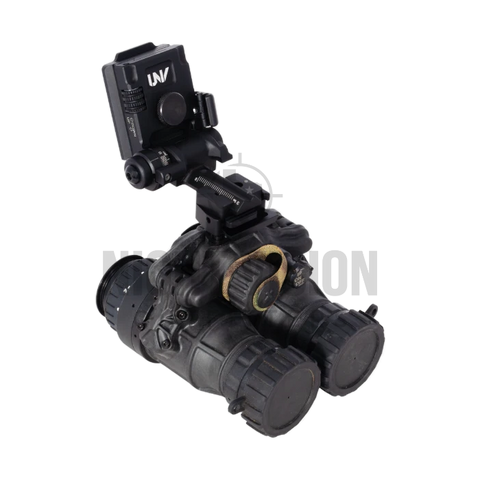

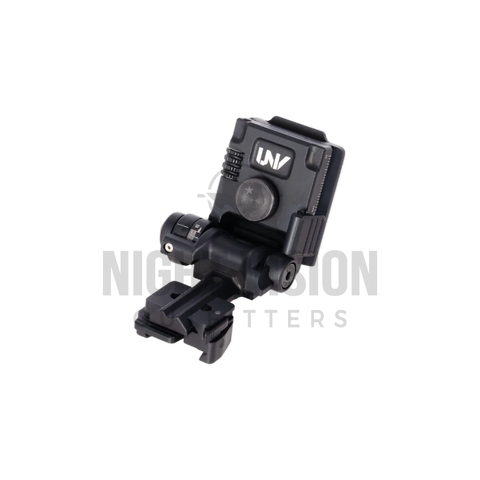

This versatility is what separates the UNV Ultimate Helmet Mount from conventional helmet mounts. Configure it as a lightweight 5.3 oz mount for traditional night vision binoculars using the included bino adapter, or convert it into the full 8.82 oz bridge configuration for dual monoculars or thermal/night vision bridged combinations. The modular design gives users one mounting platform that can adapt as their helmet-mounted optics change.

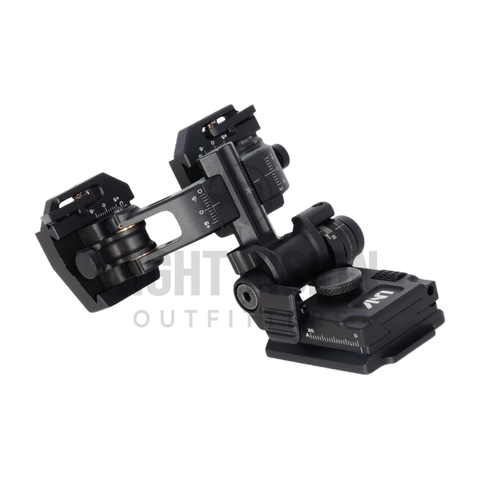

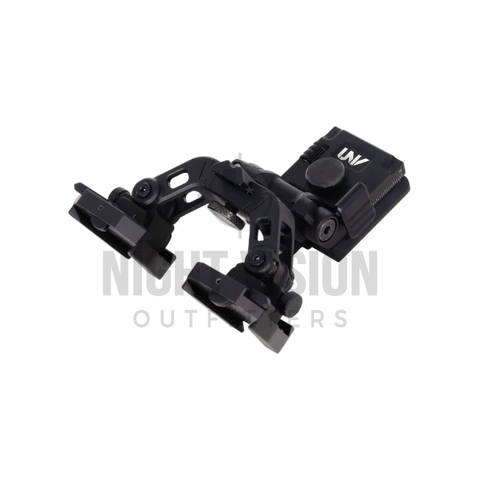

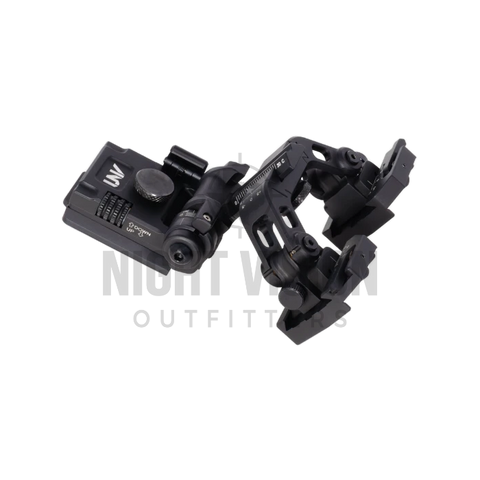

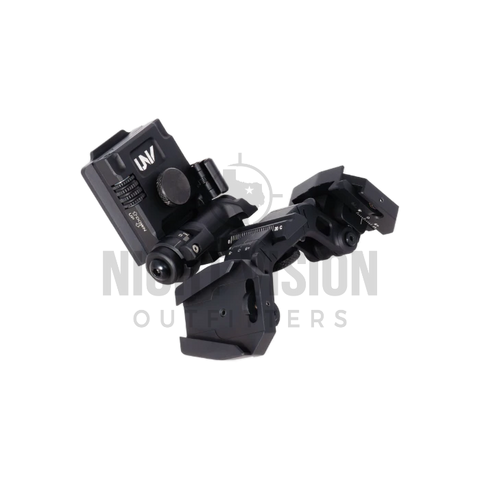

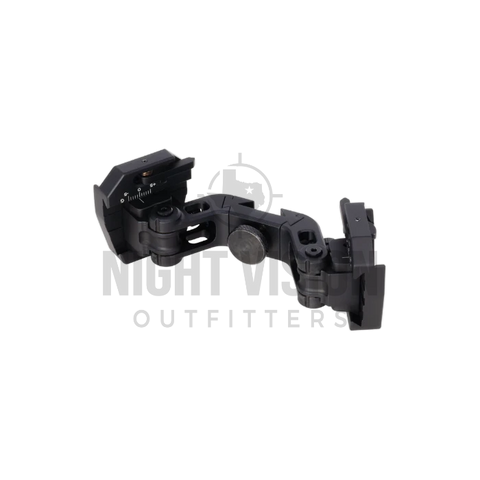

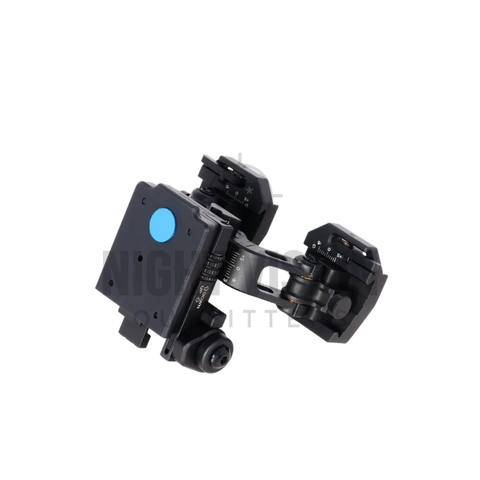

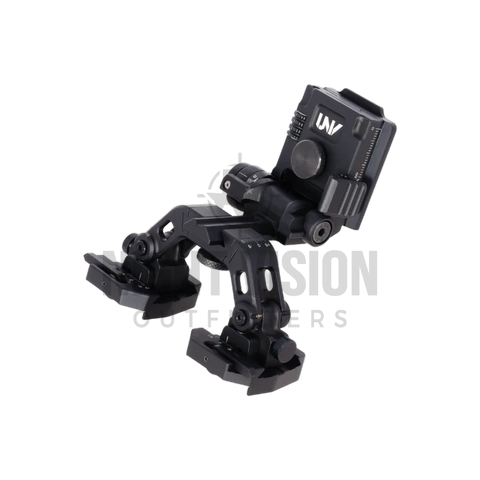

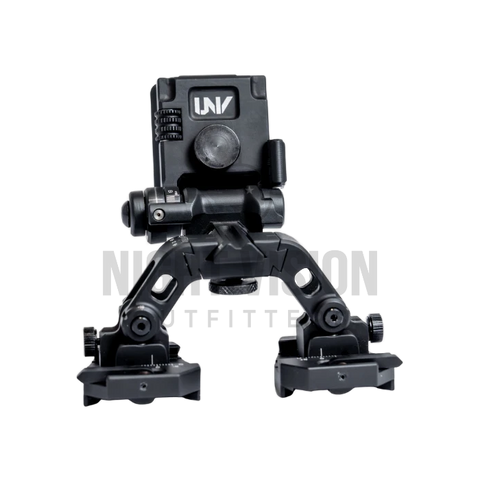

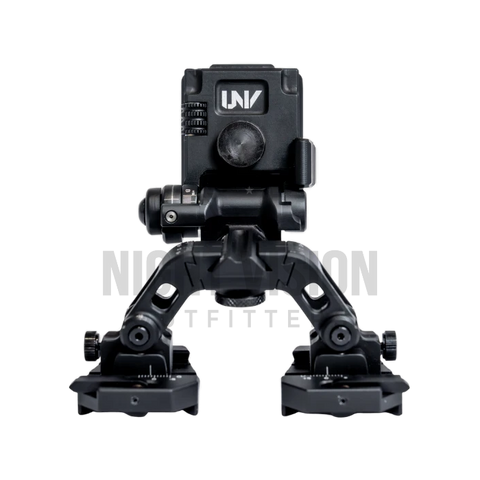

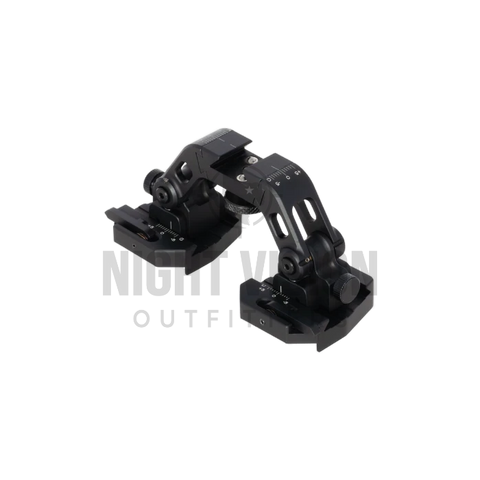

In bridge configuration, each optic articulates and adjusts independently. Tool-free vertical, lateral, tilt, and fore/aft controls allow each device to be positioned precisely for proper eye alignment, eye relief, and interpupillary distance. This is especially valuable when bridging two different devices—such as a thermal monocular and night vision monocular—that may have very different dimensions and viewing positions.

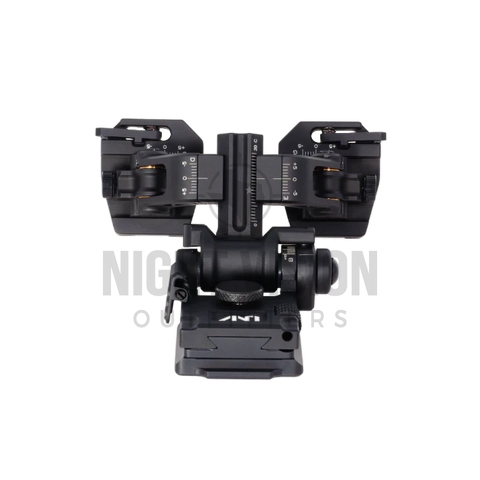

Once adjusted, indexing marks and locking mechanisms help maintain a secure, repeatable setup. Each optic can also articulate independently for quick transitions between single- and dual-eye use or to move an individual device out of the way without disturbing the rest of the system.

For users who regularly change between binocular night vision, monocular night vision, helmet-mounted thermal, or bridged thermal/NV systems, the UNV Ultimate Helmet Mount eliminates the need for multiple dedicated mounting systems and provides one highly configurable solution.

Warranty

The UNV Ultimate Helmet Mount is backed by a transferable Lifetime Factory Warranty along with a five day turnaround guarantee if service or replacement is ever required. UNV products are distributed and supported by iRayUSA in Lewisville, TX, so buy with confidence that you’ll be able to enjoy trouble-free use for years to come.

Features

• Combined Helmet Mount & Dual-Optic Bridge System
• Complete Turnkey Mounting System
• Supports NV Binoculars, Monoculars & Thermal Monoculars

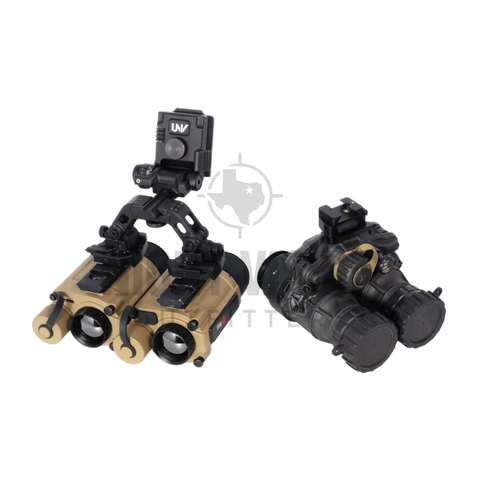

• Supports Dual Thermal & Mixed Thermal/NV Configurations
• Independent Optic Articulation
• Tool-Free Vertical, Lateral, Tilt & Fore/Aft Adjustment
• Adjustable IPD & Individual Eye Relief
• Indexed Adjustments for Repeatable Positioning
• Low-Profile Modular Design
• Bridge Configuration Weight: 8.82 oz
• Bino Configuration Weight: 5.3 oz
• Interpupillary Span: 2.0–2.8”
• Height Adjustment Range: .835”
• Fore/Aft Adjustment Range: 1.3”
• Tilt Adjustment: 30°
• Individual Pod Offset Range: .4”
• Lifetime, Transferable iRayUSA “5x5” Warranty

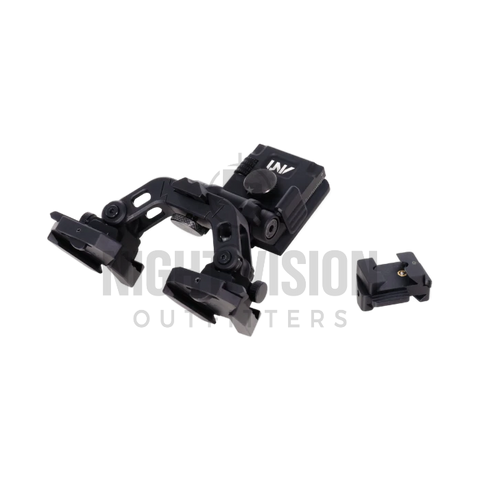

Included

• UNV Ultimate Helmet Mount

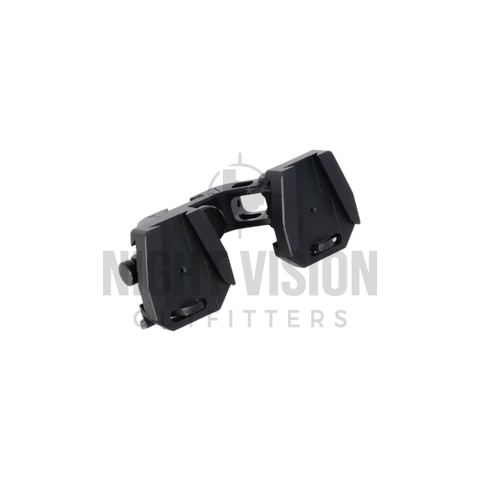

• Bridging Components
• Binocular Components

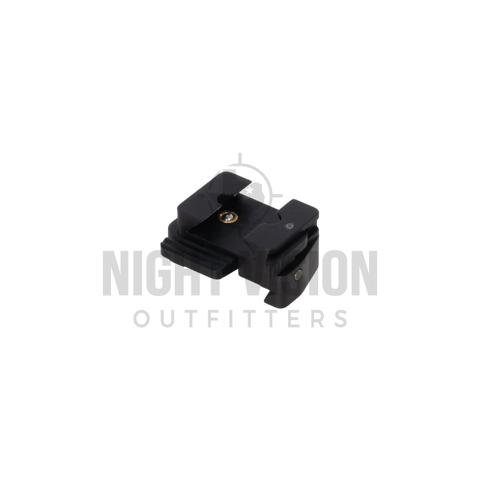

*Some monoculars and thermal devices may require a compatible dovetail shoe or device-specific dovetail adapter. Contact Night Vision Outfitters if you need help confirming compatibility with your optic.
